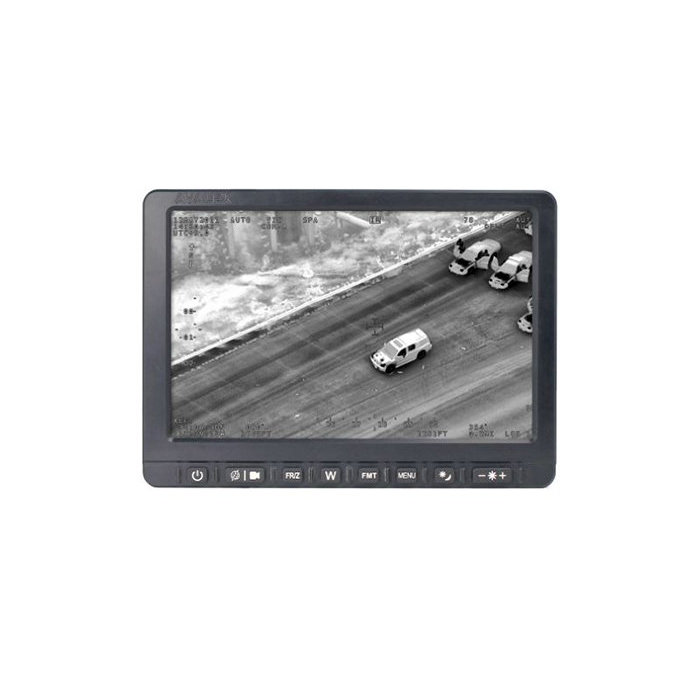

Picture of product AVM4107

Part #: AVM4107

OEM:

Mercury Systems

Desc:

Widescreen HD Display (10")

Part Number :



Mercury Systems



AVM4107

FEATURES

  • The AVM4107C offers four screen modes: full screen, split screen (SS), picture-in-picture (PIP), and pictureby-picture (PBP), also know as sideby-side
  • Split-screen displays two input signals simultaneously
  • Picture-in-picture also displays two inputs simultaneously
  • Like split screen, picture-by-picture (or side-by-side) displays two inputs next to each other; Like split screen, picture-by-picture (or side-by-side) displays two inputs next to each other
  • Bright, widescreen display, the AVM4107 has been a key selection for airborne ISR operators who need HD, SD and digital map display capability
  • Rugged, milled display frame that is minimized around the 16:10 aspect ratio display provides maximum display size in a minimal footprint
  • A bright, widescreen display, the AVM4107 has been a key selection for airborne ISR operators who need HD, SD and digital map display capability
  • 10.1ʺ 16:10 Aspect Ratio Display
  • 1280 X 800 Resolution
  • HD & SD Inputs
  • PIP & PBP Modes
  • Rugged Milled Aluminum Frame
  • Built-in Heater


SPECIFICATIONS

display area: 10.1ʺ diagonal (256.54 mm ) height: 7.09ʺ (180.086 mm)
Weight: 5 lbs. (2.26 kg) DEPTH: 1.89ʺ (48.006 mm)
width: 9.84ʺ (249.936 mm) COMPOSITE video: 1 RS-170, 1 RGB input
resolution: 1280 (h) x 800 (v) pixels (WXGA) temperature: -40 to +55 ºC (operating), -55 to +85 ºC (storage)
CONTRAST RATIO: 800:1 NVIS: Class B
REFRESH RATE: 60 Hz QUALIFICATIONS: DO-160
HORIZONTAL VIEWING: 160º VERTICAL VIEWING: 160º
ACTIVE AERA: 217 mm (h) x 135.6 mm (v) MAX POWER DRAW: 3.82A @ 28 VDC (with heater)
ASPECT RATIO: 16:10 COOLING: Passive
TOUCHSCREEN: 1 RS-232 interface SIGNALS: NTSC; PAL; STANAG3350B (RGsB); SMPTE292M
HD VIDEO: 2 inputs, 1 output POWER: 28VDC





Part Number: Description:
AVM4107 Widescreen HD Display (10")



AVM4107
- Widescreen HD Display (10")
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
