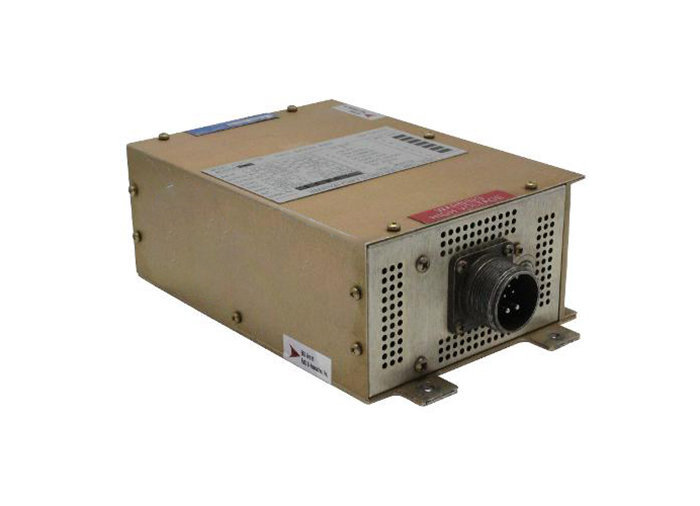

Picture of product PC-251

Part #: PC-251

NSN:

2930-00-043-2339

OEM:

MarathonNorco

Desc:

Static Inverter

Part Number :


PC-251
FEATURES
  • Converts DC electrical power ranging from 20-37VDC into monophase, sinewave, regulated AC electrical power
  • 250 VA power at 115 VAC output, 150 VA power at 26 VAC output
  • Suited for IFR equipped turbine-powered fixed-wing and rotor wing aircraft where Flight Directors/Autopilots, RMIs, ADFs, gyros and weather radar require reliable, lightweight 400 Hz power source
  • FAA TSO Approved



SPECIFICATIONS
Input Power: 28VDC at 11.9 amps (nominal); 24-32VDC (nominal range); 18-37VDC (total range) Output Power: 250 VA at 115 VRMS with a DC input voltage of 20-35 volts and/or 150VA at 26VRMS with a DC input voltage of 20-35 volts
Output Voltage: 115V RMS +-3% at a combination of 24-32V DC input and 0-125% load Dimensions: 7.0"L x 5.0"W x 2.75"H
Weight: 5.0 lbs. Efficiency: 76% nominal



PC-251
- Static Inverter

NSN: 2930-00-043-2339
