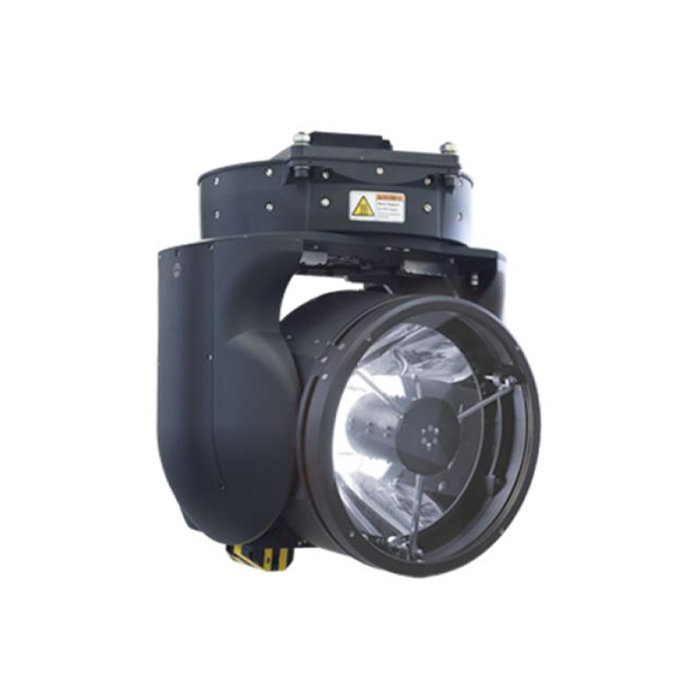

Picture of product Orion

Part #:

Model: Orion

OEM:

Luminator

Desc:

High Powered Searchlight

Part Number :

ltg logo dark







FEATURES

  • LUMEN OUTPUT 60,000 LUMEN AT 4° BEAM SPREAD
  • PEAK BEAM INTENSITY 40-50 MILLION CANDLEPOWER
  • PEAK LUMINANCE 32 LUX @ 1,000 M (3,281 FEET)
  • POWER MANAGEMENT INTEGRATED, NO JUNCTION BOX REQUIRED
  • COOLING REDUNDANT DUAL-FAN
  • SLAVING INTEGRATED, NO INTERFACE BOX REQUIRED
  • GIMBAL CONTROL TWO-AXIS REMOTE CONTROL
  • FOCUS CONTROL STEP-LESS REMOTE CONTROL
  • MOUNTING STANDARD PAYLOAD (I.E., MEEKER QDD-1, DT-1, DT-1A) OR CUSTOM



SPECIFICATIONS

weight: 65.0 LB/ 29.5 KG (TOTAL SYSTEM) DIMENSIONS/DIAMETER: 15.1" X 16.7" X 17.6" 384 MM X 424 MM X 447 MM
MATERIAL: ALUMINUM ALLOY HOUSING COLOR: BLACK, WHITE, OR CUSTOM
VOLTAGE - OPERATING RANGE: 26-29 V DC VOLTAGE - NOMINAL: 28 V DC
CURRENT - NOMINAL: 65 A (RATED), 75 A (MAX) CURRENT - STARTUP: 110 A (SPIKE)
INTERFACES: 1 X HCU RS422, 1 X SLAVING RS422 OR RS232, 1 X MAINTENANCE RS232 DISCRETE INPUTS: 24
ELEVATION (TILT) RANGE: +10°/ -110° AT 60°/SEC MAX DISCRETE OUTPUTS: 10
AZIMUTH ROTATION: +/- 175° (350°) AT 60°/SEC MAX HUMIDITY: <80 % RH AT +5 ... 50 °C
LAMP TYPE - VISIBLE & IR: 1600 WATT XENON SHORT ARC NVG COMPATIBILITY: NVG GEN II/III



Part Number: Description:
HSL.1600.AA.1 WITHOUT IR, BLACK
HSL.1600.AA.2 WITHOUT IR, WHITE
HSL.1600.BA.1 WITH IR, BLACK
HSL.1600.BA.2 WITH IR, WHITE



HSL.1600.AA.1
- High Powered Searchlight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
HSL.1600.AA.2
- High Powered Searchlight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
HSL.1600.BA.1
- High Powered Searchlight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
HSL.1600.BA.2
- High Powered Searchlight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
