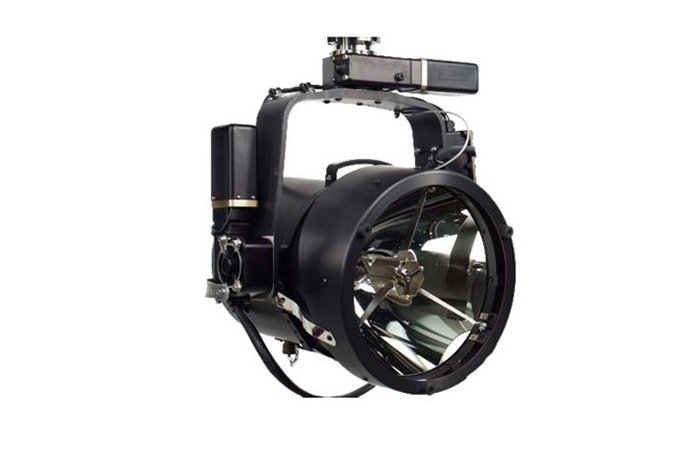

Picture of product LS-16

Part #: LS-16

OEM:

Luminator

Desc:

Searchlight

Part Number :
Luminator
LS-16 SEARCHLIGHT

FEATURES
  • ACHIEVES IN EXCESS OF 50 MILLION+ CANDLEPOWER AT 1600W
  • CIRCULAR BEAM SPREAD VARIES FROM 4-16° USING A BI-DIRECTIONAL REMOTE
  • CAN HOST UP TO 2 AUXILIARY PAYLOADS WHICH ARE ALSO CONTROLLED BY THE REMOTE
SPECIFICATIONS

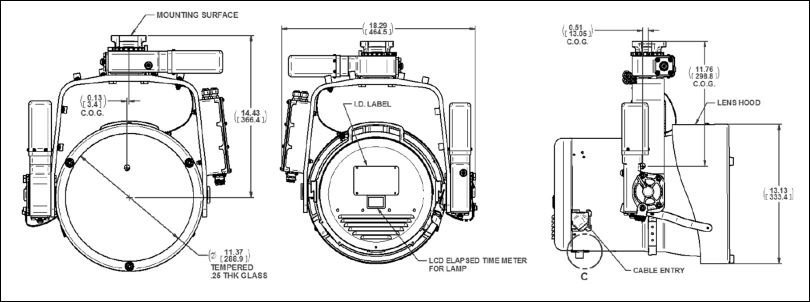

dimensions: 21.0” H X 18.3” W X 17.2” L/ 533 MM H X 465 MM W X 437 MM L watts: 1600W = 70 AMPS 1400W = 59 AMPS
voltage: 28.0 VDC (NOMINAL) XENON SHORT ARC LAMP COLOR: WHITE LIGHTWARRANTED FOR 2,000 HOURS
lamp color: WHITE INCANDESCENT ELEVATION: -5°/-90°
weight: 45 LB MAX/20.4 KG MAX (EXCLUDING EXTERNAL CABLES AND AUXILIARY MOUNTS) UNIT COLOR: CAN EXTEND AT 150 KNOTS, ONCE EXTENDED AND STATIONARY IT CAN WITHSTAND 180 KNOTS












LS-16
- Searchlight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
