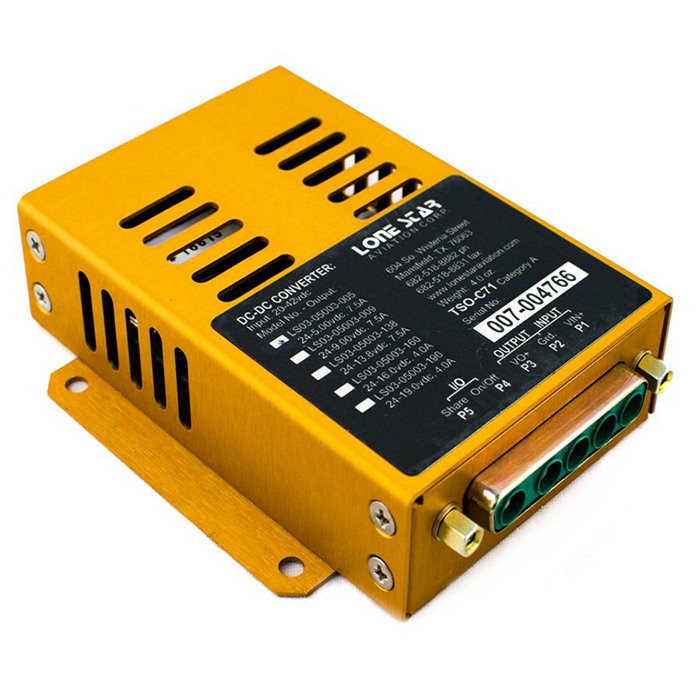

Picture of product LS03-05003

Part #:

Model: LS03-05003

OEM:

Lone Star

Desc:

28V to 14V Converter

Part Number :




LS03-05003-138



FEATURES

  • LS03-05003 is a small ruggedized DC converter
  • 28V to 14V Power Converter
  • Input protection
  • Output protection
  • Input range of 20-42 volts and has the following single outputs
  • Micro smt circuitry and multiple voltages to power your next avionics or PED gear





SPECIFICATIONS

Dimensions: 6.0"W x 5.0"D x 1.75"H Weight: 116grams / 4.09oz
Input Voltage: 20v-42v DC Output Voltage: (NOM) 13.8v DC, (Range) 12.0v-14.25v DC
Output Current: 6.0A (Cont), 6.5A (Max) Efficiency: 93% min. (from 22v - 28v DC Input)
Operating Temp: -55C to +70C MTBF: -125,000 hrs.
Storage Temp: -55C to +80C Vibration Freq: 5 to 50 Hz



Part Number: Description:
ls03-05003-138 28V to 14V Converter




LS03-05003-005
- 28V to 5V Converter

NSN: 6130-01-620-0697

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
LS03-05003-138
- 28V to 14V Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
LS03-05003-160
- 28V to 16V Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
LS03-05003-190
- 28V to 19V Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
