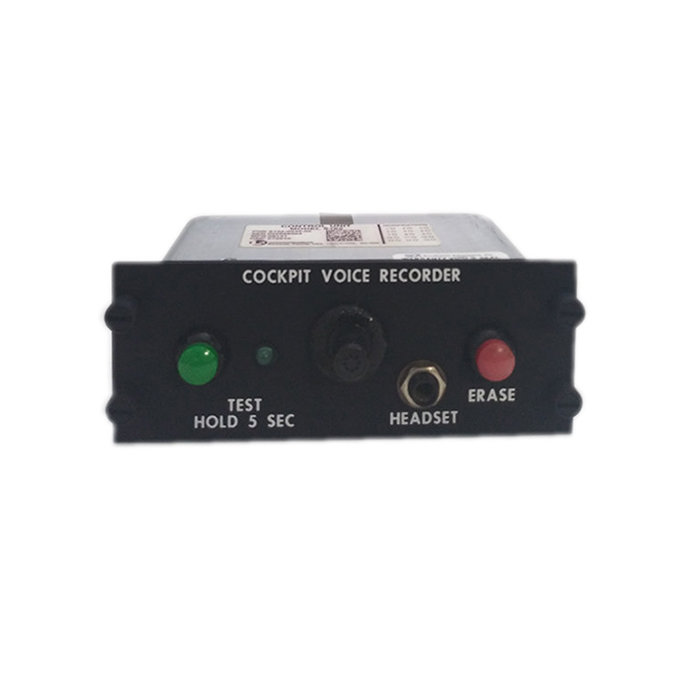

Picture of product S162

Part #: S162-0030-00

Model: S162

NSN:

5835-01-572-9308

OEM:

L3Harris

Desc:

CVR Control w/ Microphone

Part Number :

L3harris - D2N Technology Solutions





FEATURES

  • CVR control with built-in microphone
  • 2.25-inch high case
  • 0.125-inch panel thickness, non-illuminated
  • Connects to CVR using 41 pin circular connector
  • Front panel includes two pushbuttons (ERASE, TEST), ¼-inch phone jack (HEADSET) and a green lamp (TEST)
  • Available in several colors
  • DO-160C, ED-56A compliant



SPECIFICATIONS

Dimensions: 2.25”H x 5.75”W x 3.0”D Weight: 0.6 lbs
Mating Connector (S):    MS3116F20-41S (solder Mating Connector (C):    MS3126F20-41S (crimp)
Part Number: Description:
S162-0020-00 Bezel TBD
S162-0030-00   Black Bezel, standard unit
S162-0030-70   Black Bezel, custom PN
S162-0040-00   Gray Bezel



Serial # 100020774
Condition NEW
Mods -
Tag Date 11/18/24
Shop L3Harris Aviation Products Inc.
Warranty 1 Year
S162-0030-00
- CVR Control w/ Microphone, Black

NSN: 5835-01-572-9308

Price Condition Status
$6,450.00 NEW OUTRIGHT 1 IN STOCK
S162-0020-00
- CVR Control w/ Microphone, Gray

NSN: 5835-00-019-1816

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S162-0040-00
- CVR Control w/ Microphone, Boeing Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
