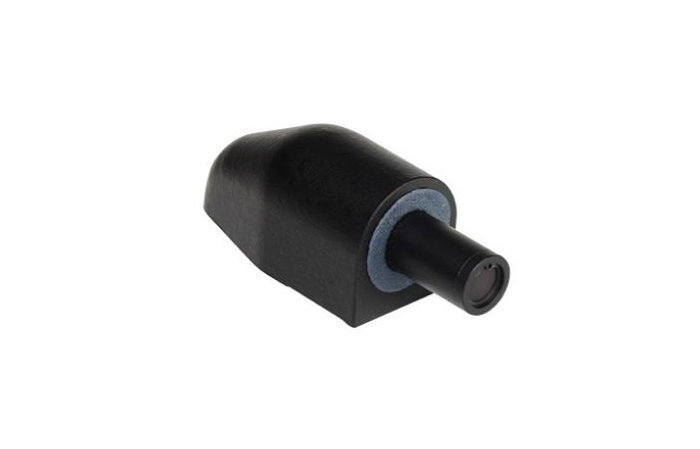

Picture of product S058

Part #:

Model: S058

OEM:

L3Harris

Part Number :
L3Harris Logo

S058

FEATURES
  • The S058 is a direct replacement for the proven S056 model and compliant with the ED-112 specifications.
  • S058 Cockpit Area Microphone includes Micro-Electro-Mechanical Systems (MEMS) technology,
  • Improved vibration immunity for helicopter and turboprop installations, and improved cell phone/GSM signal immunity
  • S058 is compatible with the S161/S261 control units and works directly on FA5000 and FA2100 family recorders
  • Mounting also is compatible with legacy CAM models
  • Compliant with latest ED-112A specifications
  • Improved vibration immunity for helicopter and turboprop installations
  • Ugraded cell phone / GSM signal immunity
  • Replacement for S056
  • Mounting compatible with legacy CAM models
  • Simplified installation and wiring
  • Compatible with S161/S261 control units and directly to FA5000 and FA2100 family recorder

SPECIFICATIONS
height: 1.2 in. (3.0 cm) width: 1.1 in. (2.8 cm)
weight: < 0.3 lb. (0.14 kg) depth: 3.2 in. (8.1 cm)
power: Requirements- CVR powered or preamplifier powered, Consumption < 1 W compatibility: FA2100, FA2200, FA2300, FA5000, SRVIVR and APR2500
interface: Interface Three-wire shielded cable pigtail Compatibility - Compatible with legacy two-wire installations regulatory specs: EUROCAE MOPS ED-112A, RTCA DO-160G
indicators: Microphone Peak / Overload (accessible during installation only, not visible to pilots in installed orientation) temperature: -15 °C to +70 °C
altitude: 15,000 ft. humidity: 95% RH (non-condensing)
comprehensive: DO-160G test categories upon request product certification: FAA TSO-C123b
Part Number: Description:
S058-0048-00 Cockpit Aera Microphone
S058-0048-01 Cockpit Aera Microphone
S058-0048-10 Cockpit Aera Microphone
S058-0048-95 Cockpit Aera Microphone
S058-0148-10 Cockpit Aera Microphone





S058-0048-00
- CVR Remote Microphone
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S058-0048-01
- Microphone Assembly
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S058-0048-10
- Microphone Assembly
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S058-0048-95
- Microphone Assembly

NSN: 5965-01-627-7972

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S058-0148-10
- Microphone Assembly
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
