Picture of product S055

Part #:

Model: S055

OEM:

L3Harris

Part Number :



L3Harris Logo

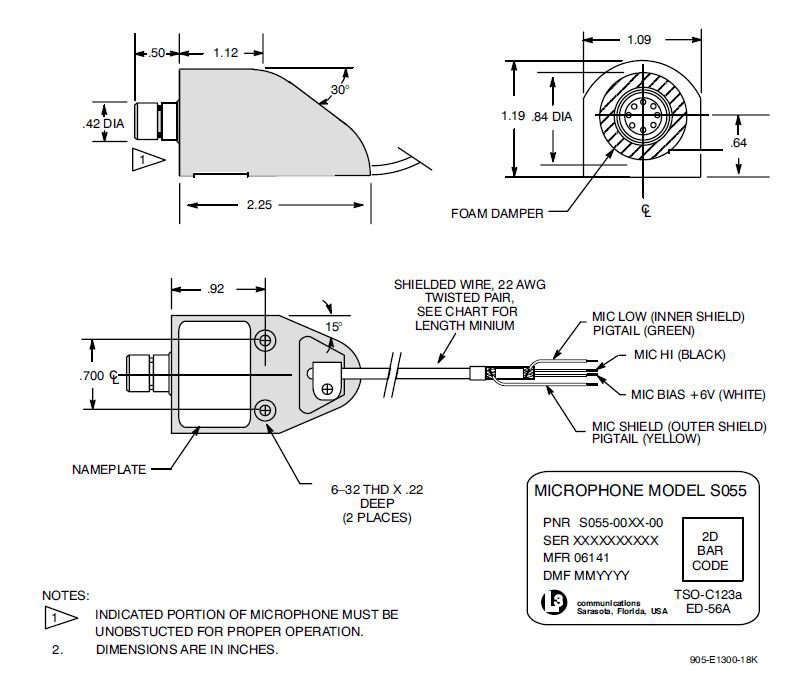

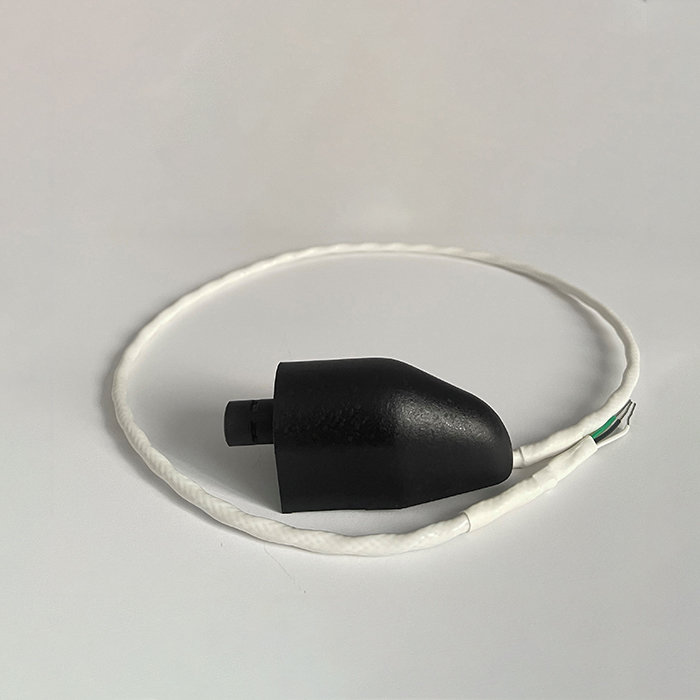

S055 Remote Microphone

FEATURES

  • The Model S055 Microphone is required with the S151 and S251 Control Units and with the S150 Preamplifier Module



SPECIFICATIONS
minimum cable length: 17 inches, (Black No. 37038) 70" Weight: 0.2 lbs.
working voltage: <10 VDC m  2 element capacity: 17pF @ 1 kHz
OUTPUT LEVEL: (1 kHz sensitivity): 7 to 17.5 mV (11 mV nom.) @ 100dB SPL with A 16.9 kOHM, Load Resistor @ 1 kHz, 5 Feet color: Black, color 27038 PER FED-STD-595
SHELL: Brass special feature: Cardioid Polar Response
mIC BIAS: + 6 VDC Input (White) height: 1.19 inches, .84 DIA

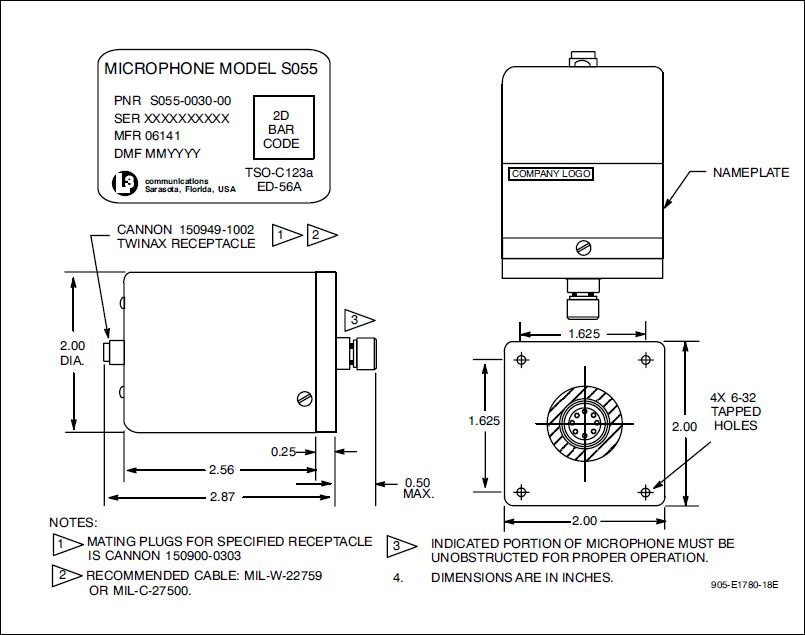

S055 Microphone Module

cOLOR: Brown, Medium (Boeing) weight: 0.4 lbs.
height: 2.00 inches  wiidth: 2.00 inches
tApped holes: 4x 6-32 twinax receptacle: Cannon 150949-1002



Part Number:  Description:
S055-0030-00 Panel Mount Microphone Module
s055-0065-00 Remote Microphone, Gray-No. 36116
s055-0066-00 Remote Microphone, Brown ATR-42
s055-0067-00 Remote Microphone, Black- No. 37038
s055-0067-01 Remote Microphone, Black- No. 37038
s055-0068-00 Remote Microphone, Brown Medium (Boeing)
S055-0067-00
- CVR Microphone, Black

NSN: 5965-01-520-3772

Price Condition Status
$2,450.00 NEW OUTRIGHT 1 IN STOCK
REQUEST SVC OUTRIGHT REQUEST LEAD TIME
S055-0030-00
- CVR Microphone. Boeing Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S055-0065-00
- CVR Microphone, Gray

NSN: 5965-01-526-4758

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S055-0066-00
- CVR Microphone, ATR Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S055-0067-01
- CVR Microphone, Black, 70" Cable
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S055-0068-00
- CVR Microphone, Boeing Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
