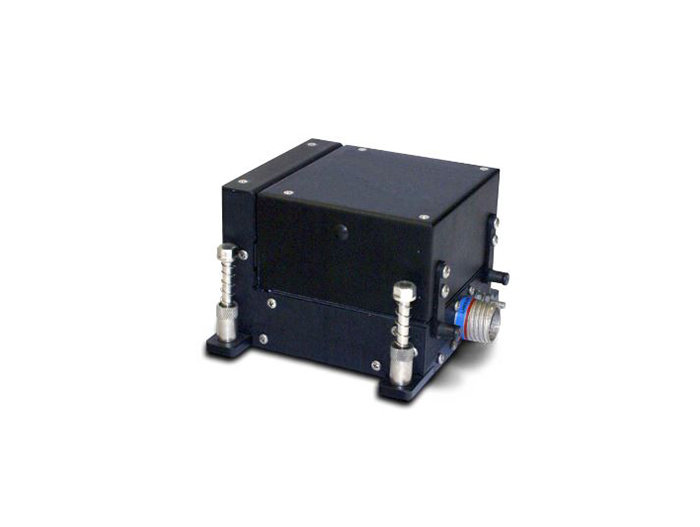

Picture of product RIPS

Part #:

Model: RIPS

OEM:

L3Harris

Desc:

Recorder Independent Power Supply

Part Number :
L3Harris Logo

RIPS

FEATURES
  • The L3Harris Flange-mounted Recorder Independent Power Supply (RIPS) is designed to provide essential back-up battery power for Cockpit Voice Recorders (CVRs)
  • RIPS provide 10 minutes of independent back-up power with when standard aircraft power is interrupted or lost, ensuring continuity of critical CVR operation
  • Uses nickel cadmium (NiCad) battery technology and batteries do not require recharge time to repeat a back-up operation
  • Offers a NiCad battery heater option for unpressurized aircraft installations
  • Features Built-in Test Equipment (BITE), and BITE reporting for maintenance and fault is available on dedicated discrete outputs
  • Choice of Lithium ion (Li-ion) or Nickel Cadmium (NiCad) battery technology
  • 20 W minimum output capability
  • Batteries do not require recharge time to repeat a backup operation
  • Advanced battery management for long life
  • Built-In Test Equipment (BITE)
  • BITE reporting for maintenance and fault available on dedicated discrete outputs
  • NiCad battery heater option for unpressurized aircraft installations
  • Compliant with TSO-C155 and ARINC 777

SPECIFICATIONS
height: 4.0 inches (102 mm) width: 5.4 inches (137 mm)
length: 4.5 inches weight: <4 lbs.
power: Type I: 115 VAC, 400 Hz, Single phase or 28 VDC, Type III: 28 VDC cONFIGURATION CONNECTOR: (Type III) D38999/20JC35PN (MIL-C-3899)
RECHARGING TIME: Complaint with ARINC 777 Environmental:  RTCA DO-160/EUROCAE ED-14 "Environmental Conditions and Test Procedures for Airborne Equipment"
Output: 28 VDC, ±10 min; also available for military applications in a 20-min configuration bite: Built-in Test Equipment: determines the state of readiness of RIPS to perform its function and also provides valid indication within 5 seconds of power being applied
company certification: L3 Aviation Recorders Quality Management System is ISO 9001:2008 and AS9100:2009 Rev. C Certified
Part Number: Description:
100-2010-100 Recorder Independent Power Supply
1002-0101-01 Recorder Independent Power Supply
1003-0101-00 Recorder Independent Power Supply
1003-0201-00 Recorder Independent Power Supply





100-2010-100
- RIPS Unit, Type II, Tray, NICAD
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
1002-0101-01
- RIPS Unit (Type II, Tray, Nicad)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
1003-0101-00
- RIPS Unit, Type III, NICAD
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
1003-0201-00
- RIPS Unit, Type III, Lithium-Ion
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

RIPS is an abbreviation for Recorder Independent Power Supply. A RIPS unit provides a critical flight recorder several minutes of independent backup power when standard aircraft power is interrupted or lost.
