Part #: 501-1712-01

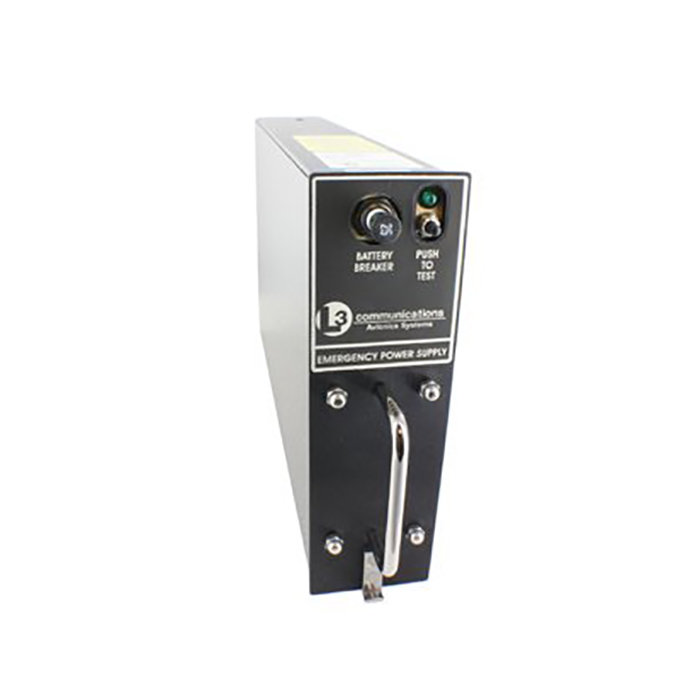

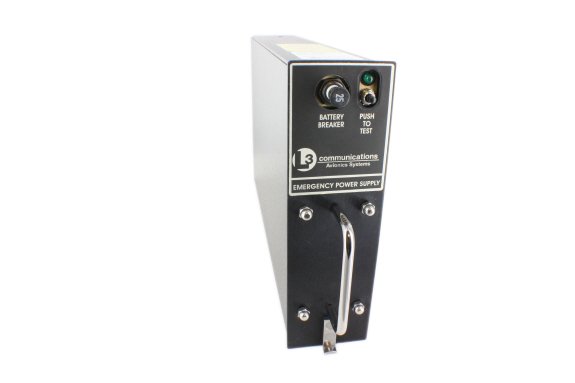

Model: PS-855A

NSN:

6130-01-663-0061

OEM:

L3Harris

Desc:

Power Supply, 2.5 AMP, 5 VDC Output

Part Number :
L3Harris Logo

PS-855A



FEATURES
  • Emergency Power Supply Unit
  • Provides emergency power to self-contained attitude gyros and other emergency equipment in the event of total aircraft power failure
  • Automatic operation upon 28 VDC essential bus failure
  • Automatically maintains full charge from normal flight operations (rechargeable to 50% capacity within one hour at 25°C)
  • Temperature compensated battery capacity test
  • Capacity test performed under load
  • Test performed remotely from the cockpit or at the unit
  • Automatic battery heaters with redundant control for safety
  • Heaters inhibited during low input voltage to prevent battery discharge
  • Internal load removed automatically after 5-second capacity test
  • Battery short circuit protected
  • Use of low maintenance lead acid batteries
  • Integral HIRF and lighting protection
  • Variable 5 VDC output
  • 5 V converter input undervoltage shutdown
  • 5 V converter input overvoltage shutdown
  • 5 V output short circuit protection (PS-855C & PS-855D only)
  • Environmental Qualifications:
SPECIFICATIONS
Dimensions: 7.820"H x 14.085"L x 2.400"W Weight: 9.1 lbs. max (A, C, D) 13.7 lbs. max (B)
Input Power: 28 VDC 15 Amps. Battery Output Voltage: 24 to 28 VDC
5 VDC Converter: Adjustable +2.5 to 5.5 VDC, capable of delivering 25 watts Battery Output Current: Steady State Load: 10 Amp. max (A & B) 5 Amp. max (C & D) Overload Capability: 15 Amps for 5 minutes (A & B) Overload Protection: 25 Amp. max (A & B) 7.5 Amp. max (C & D)
Heater Voltage/Current: 28 VDC 3.85 ± 0.6 Amps. max Amps/Hour: 2.5 Amp/Hour (A, C, & D) 5.0 Amp/Hour (B)
TSO: Applicable sections of C4C Service Life: Unrestricted Service Life
Part Number Power supply Description:
501-1712-01 PS-855A
501-1712-02 PS-855B
501-1712-03 PS-855C
501-1712-04 PS-855D



Serial # S00106
Condition NEW
Mods 1-9
Tag Date 10/16/24
Shop Extant Aerospace
Warranty 1 Year
501-1712-01
- Power Supply, 2.5 AMP, 5 VDC Output

NSN: 6130-01-663-0061

Price Condition Status
$11,500.00 NEW OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

According to L3 Service Letter SL-170 (Rev. K), the condition of the batteries is required to be checked every 3 to 6 months according to the Periodic Check procedure outlined in the bulletin. The Periodic Check procedure is similar to the "Preflight Check" that is recommended before aircraft flight.

Click on a headline below to see more:

On December 21, 2022, L3Harris released a Service Information Letter indicating the transfer of production, service, publications, Intellectual Property (IP) to Extant Aerospace for the following models:



PS-823 series

PS-834 series

PS-835 series

PS-850 series

PS-855 series

SC-841

SI-100

SI-1000

SI-1250

SI-1500

SI-2500

SI-3003

The transfer of technical manuals, service literature, production, and service to Extant Aerospace was effective April 06, 2023. This includes spares and piece part sales.
