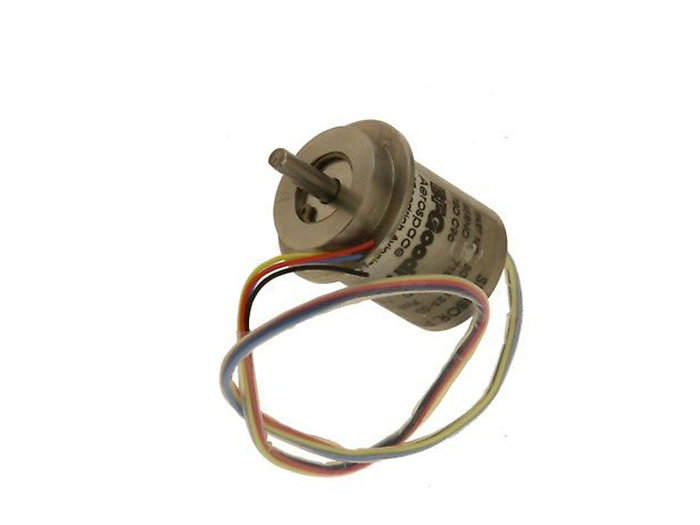

Picture of product FU-500C
Part #: 501-1123-03
Model: FU-500C
Desc: Position Sensor
OEM: L3Harris
Sched-B: 9014.90.0000
ECCN: 7A994
Part Number :

L3Harris Logo



FU-500C

FEATURES

  • Used in conjunction with several aircraft installed systems onboard the Gates Learjet 54/55/56 series aircraft for transmitting aircraft control surface feedback
  • Position sensor acts as a variable transformer



SPECIFICATIONS

dImensions: 2.3" L x 1.3" D wEIGHT: 0.3 lbs
input voltage: 26 volt, 400 Hz, single phase, 0.08 amps maximum OUTPUT VOLTAGE: 100 m Volts per degree of shaft rotation
PART NUMBER:  Description:
501-1123-03 Position Sensor



501-1123-03
- Position Sensor
