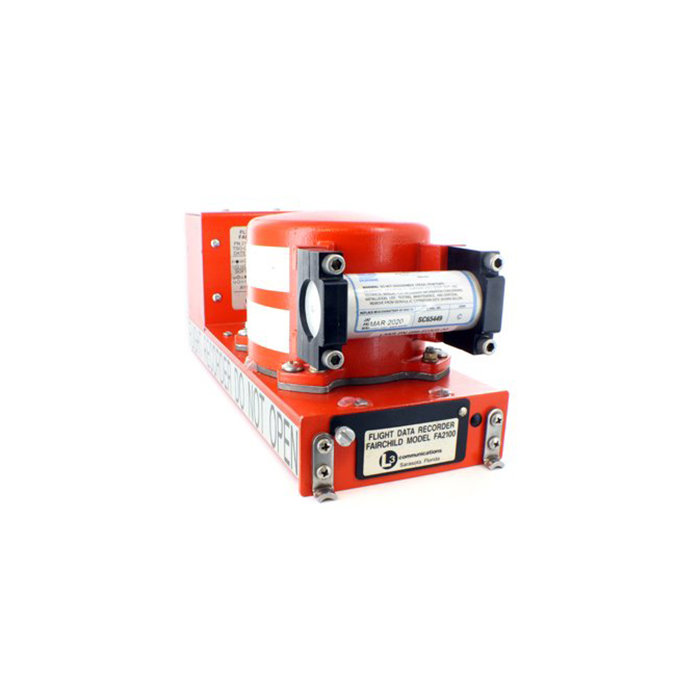

Picture of product FA2100 FDR

Part #: 2100-4043-00

Model: FA2100 FDR

NSN:

6610-01-499-0741

OEM:

L3Harris

Desc:

Solid State FDR

Part Number :
L3Harris Logo

FA2100 FDR
FEATURES
  • Solid State Cockpit Flight Data Recorder (FDR)
  • Directly interchangeable with the Fairchild Model F800, F1000, ARINC 573 and 717 FDRs
  • Records 64/128/256/512/1024 wps flight data for a minimum of 25 hours
  • Commercial airline field experience of > 50,000 hours MTBF
  • Military Options (MIL-STD-1553)
  • Lightweight - <11 lbs with stainless steel CSMU (4.6 kg)
  • Optional titanium CSMU
  • Low power consumption - 7.5W Vdc, 8.5W Vac
  • Accelerometers and installation accessories available
  • Common ground support equipment with FA2100 CVR and CVDR
  • Combined CVR & FDR option available  -- See FA2100 CVDR
SPECIFICATIONS
Size: 1/2 ATR, Short or Long Dimensions: 5.5"H x 5"W x 12.6"D (Short) 5.5"H x 5"W x 19.6"D (Long)
Weight: 10 lbs nominal (Short) 10.6 lbs nominal (Long) Control Unit:  18VDC, 25 mA short-circuit protected power source for control unit/microphone preamplifier
Requirements: 115 VAC, 400 Hz or 28 VDC Consumption: 7.5W max when powered by 28 Vdc & 8.5W max when powered by 115 Vac 400 Hz
Time: Storage capacity exceeds 25 hrs of flight data Rear Connector: Dual 57-pin DPX2-37065-0011 connector compatile with ARINC 573/717/747
Mating Connector: ITT Cannon DPXBMA-57-33S-0001 or equivalent Temperature: Operating: -55° to +70°C; Non-operating: -55° to +85°C
Altitude: -1000 to 55,000 ft Vibration: DO-160C Para 8.5.2 Category C (random)
Penetration: ED-55, 500 lbs/10 ft/¼ inch probe Static Crush: ED-55, 5000 lbs
Fire Protection: 50,000 BTU/sq ft/hr for 60 min @ 1100°C; 10 hrs @ 260°C Impact: ED-55, 3400 g, 6.5 ms, half-sine shock wave
Beacon: Underwater Acoustic Beacon, 6-year battery & bracket supplied with unit Certification: FAA TSO-C124a
Regulatory Specifications: ARINC 404A, 573/717 (64/128 wps), 747 (64/128/256/512/1024 wps), EUROCAE MOPS ED-55, RTCA/DO-160C, RTCA/DO-178B Level D
Part Number Flight data recorder Description:
2100-2042-00 Short; ARINC 747 - 64 or 128 wps (10 lbs)
2100-2043-00 Short; ARINC 747 - 64, 128 or 256 wps, 115Vac, 400Hz or 28 VDC (10 lbs)
2100-2043-01 Short; ARINC 747 - 64, 128 or 256 wps; Titanium CSMU (7.7 lbs)
2100-2044-00 Short; ARINC 747 - 64, 128, 256 or 512 wps (10 lbs)
2100-2045-00 Short; ARINC 747 - 128, 256, 512 or 1024 wps (10 lbs)
2100-2045-22 Short; ARINC 747 - 1024 wps, 115VAC, 400Hz or 28 VDC
2100-4042-00 Long; ARINC 747 - 64 or 128 wps, AC/DC, NSN# 6610-01-471-8090CX (10.6 lbs)
2100-4042-53 Long, 25-Hour, MIL STD-1553-128 WPS, AC/DC, NSN# 6610-01-501-1161CX
2100-4043-00 Long; ARINC 747 - 64, 128 or 256 wps, AC/DC, NSN# 6610-01-499-0741CX (10.6 lbs)
2100-4044-00 Long; ARINC 747 - 64, 128, 256 or 512 wps (10.6 lbs)
2100-4045-00 Long; ARINC 747 - 128, 256, 512 or 1024 wps, AC/DC (10.1bs)
2100-4045-22 Long; ARINC 747 - 128, 256, 512 or 1024 wps, AC/DC



Serial # 000001078
Condition SVC
Mods 1-2,4,9,11-14,17
Tag Date 11/13/23
Shop L3Harris Aviation Products Inc.
Warranty 6 Months
2100-2042-00
- Solid State Flight Data Recorder
Price Condition Status
$24,500.00 SV OUTRIGHT 1 IN STOCK
$7,500.00 SV EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4043-00
- Solid State FDR

NSN: 6610-01-499-0741

Price Condition Status
$9,950.00 SVC OUTRIGHT 1 IN STOCK
$3,750.00 SV EXCHANGE 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2043-00
- Solid State Flight Data Recorder

NSN: 6610-01-684-0980

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
2100-2043-01
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2043-12
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2044-00
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2044-01
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2044-51
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-00
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-01
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-02
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-12
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-22
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2045-99
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2244-00
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-2245-22
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4042-00
- Solid State FDR

NSN: 6610-01-471-8090

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
2100-4042-01
- Solid State FDR (Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4042-02
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4042-12
- Solid State FDR (Cyrillic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4042-53
- SSFDR, Long Case, 25 Hour

NSN: 6610-01-501-1161

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4042-99
- Solid State FDR (w/o ULB)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4043-01
- Solid State FDR (Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4043-02
- Solid State FDR

NSN: 2100-4043-02

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
2100-4043-12
- Solid State FDR (Cyrillic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4043-22
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4043-99
- Solid State FDR (w/o ULB)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4044-00
- Solid State Flight Data Recorder

NSN: 6610-01-499-6500

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
2100-4044-01
- Solid State FDR (Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4044-02
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4044-12
- Solid State FDR (Cyrillic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4044-22
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4044-99
- Solid State FDR (w/o ULB)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4045-00
- Solid State FDR

NSN: 6610-01-624-5664

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
2100-4045-01
- Solid State FDR (Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4045-02
- Solid State Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4045-12
- Solid State FDR (Cyrillic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4045-22
- Solid State Flight Data Recorder

NSN: 6610-01-648-6527

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
2100-4045-99
- Solid State FDR (w/o ULB)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4065-00
- FDR, 1024WPS, A400M
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4243-00
- SSFDR, 256 WPS, 90 DAY ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4245-00
- Flight Data Recorder

NSN: 5895-01-653-9749

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4245-22
- SSFDR, 1024WPS, 90 DAY ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4245-60
- Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4265-00
- FDR, 1024WPS, A400M, 90 DAY ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-4945-22
- SSFDR, 1024 WPS,90 DAY ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Underwater Locator Beacon (ULB) is usually the only part that requires any type of periodic maintenance for most Cockpit Voice Recorders (CVR) and Flight Data Recorders (FDR). This maintenance includes cleaning and testing the ULB every 2 years and replacing the battery every 6 years. It should be noted that some aircraft maintenance programs may include testing and/or bench testing of CVRs or FDRs as part of the aircraft maintenance program.
