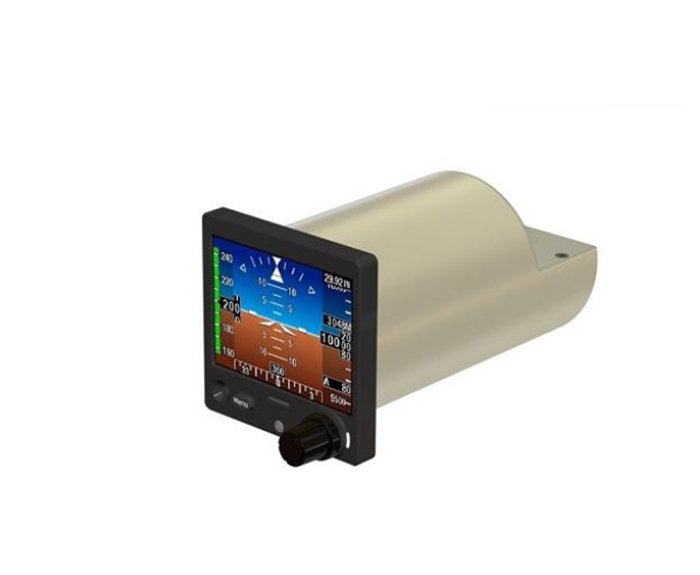

Picture of product EFD-750

Part #:

Model: EFD-750

OEM:

L3Harris

Desc:

Electronic Flight Display

Part Number :
L3Harris Logo


EFD-750

FEATURES
  • Backup instrument systems designed specifically for turboprop, light jet and helicopter platforms
  • Scalable; comes standard with attitude, airspeed, altitude, slip/skid
  • Hardware configurations are available to support internal air data, or external air data from an existing digital source on the aircraft
  • Mirrors PFD presenting airspeed, altitude, attitude and slip data
  • Options for heading and navigation
  • Certified to DO-178C and DO-254 Level A
  • Low cost, compact design for higher performance turboprop and light jets
  • Compatible with existing digital NAV and GPS receivers
  • High-resolution, 24-bit color display
  • 3” round case for easy installation into existing panel cutouts
  • Configurable airspeed VNE and VMO warning cues for Part 23, Part 25 and Part 27/29 aircraft
  • Configurable Static Source Error Correction (SSEC)
  • Barometric Altimeter settings may be synchronized to the aircraft’s primary display system to reduce pilot actions
  • Utilizes installer programmed data configuration module that stores all aircraft and interface data
  • Heading display is available through an existing digital heading source, or an optional low cost and compact MAG-500 magnetometer
  • Options are available for the display of navigation data.

SPECIFICATIONS
Weight: Maximum 2.75 lb./1.25 kg interfaces (#): ARINC 429 Inputs (5), ARINC 429 Output (1), RS-485 Serial Input (interfaces with MAG-500)(1), RS-232 Serial, Analog Input (OAT) (1), Discrete Output (1), Dimming Bus (1), I2C interface to the DCM-750 (1)
etso: EASA accepted in accordance with FAA-EASA Technical Implementation Procedures (TIP) Rev 5 (paragraph 2.5.1 ‘TSO/ETSO Articles Accepted under Reciprocal Acceptance’). No ETSO marking on the Articles are required. TSO: C106, C113a, C201, C209
Power:
14 or 28 VDC electrical systems (10-32 VDC)
DESIGN:
DO-178C and DO-254 - Design Assurance Level A
nAVIGATION: VOR/ILS or GPS Navigation or both
Part Number: Description:
9200-15753-0101 Electronic Flight Display, External Air Data (ARINC-429)
9200-15754-0101 Electronic Flight Display, Internal Air Data (Pitot/Static - 1/8 NPT)
9200-15754-0201 Electronic Flight Display, Internal Air Data (Pitot/Static - Hydraflow)





9200-15753-0101
- Electronic Flight Display (External Air Data)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
9200-15754-0101
- Electronic Flight Display (Internal Air Data)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
9200-15754-0201
- Electronic Flight Display (Internal Air Data)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
