Part #: DM NI70-2

Model: DMNI70

OEM:

L3Harris

Desc:

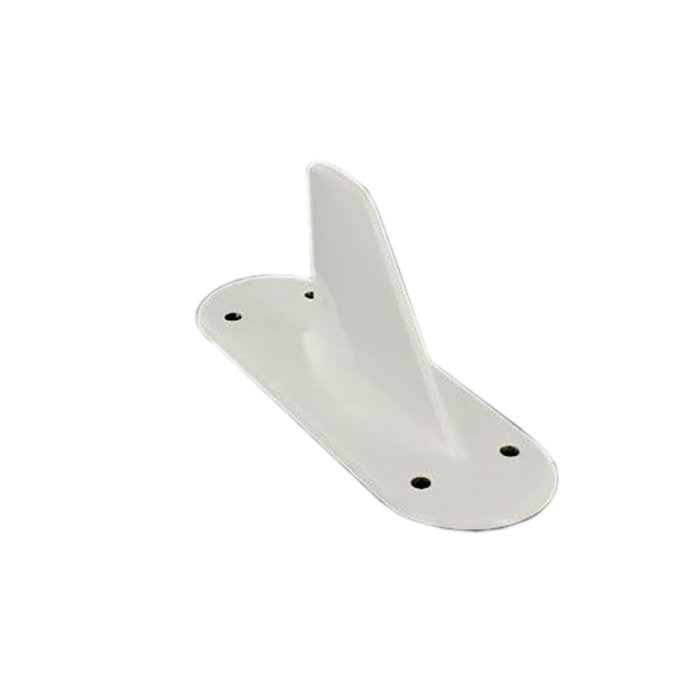

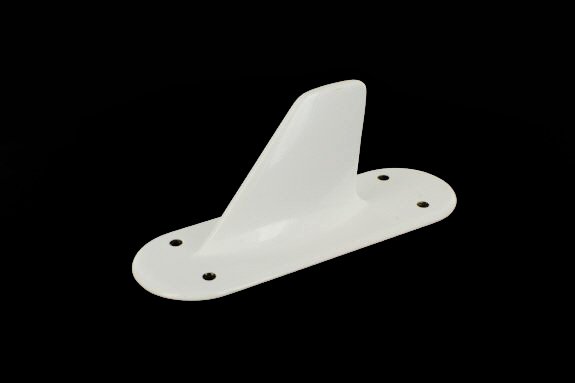

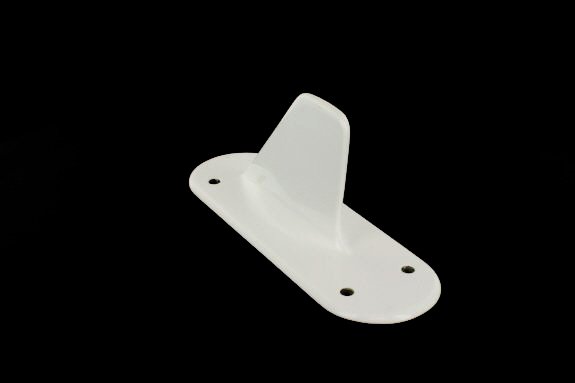

DME/Transponder Antenna

Part Number :
L3Harris Logo




DM NI70
FEATURES
  • L-Band DME/ATC Transponder Antenna
  • 950 MHz to 1,220 MHz Frequency Range
  • Provides omnidirectional, vertically polarized coverage when installed on top, or bottom of aircraft
  • Used with Civil Aviation ATC transponders & DMEs (after freq. range)
  • Streamlined shape, minimal aerodynamic drag
  • Single metal element



SPECIFICATIONS
Frequency Range:

950 to 1220 MHz

Power: 2 kW peak
VSWR: Radiation Patterns: Omnidirectional
Gain: Equivalent to quarter wave stub Impedance: 50 Ohms
Polarization: Vertical DC Resistance: Open Circuited
Connector: C (female) -1, -3 BNC (female) -2 Weight: 0.25 lbs.
Finish: White Drag, Sea Level @ 250 mph: 0.5 lbs
TSO C66a: TSO C74b: ENV. CAT. JAJXXXX ENV. CAT. JAJXXXX CAT. II
Part Number: Description:
DM NI70-1 Type C (female) connector, DME/Transponder Antenna
DM NI70-2 Type BNC (female) connector, DME/Transponder Antenna
DM NI70-3 Type C (female) connector. 6 screw mounting pattern, DME/Transponder Antenna



DM NI70-2
- L-Band Antenna/4 Hole/BNC
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
