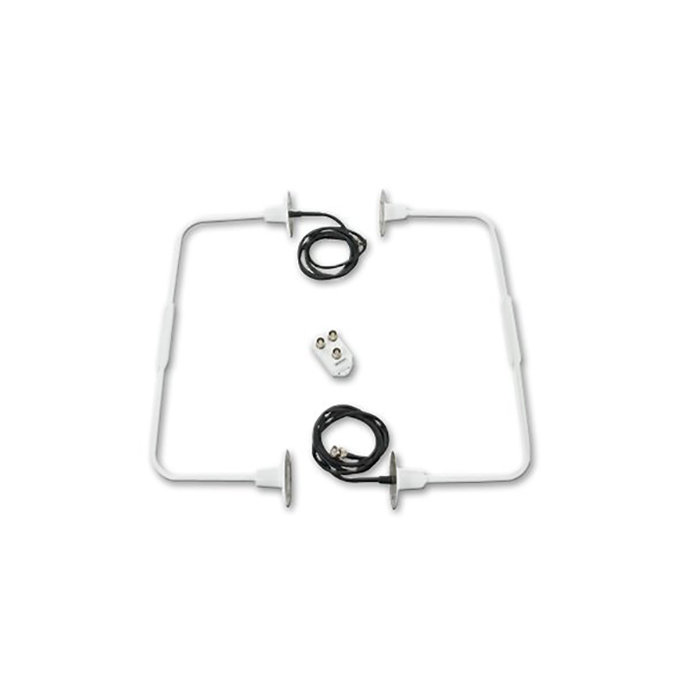

Picture of product DMN48-3

Part #: DM N48-3

Model: DMN48-3

NSN:

5821-00-721-4303

OEM:

L3Harris

Desc:

Balanced Loop Antenna

Part Number :

L3Harris Logo


DM N48-3
FEATURES
  • VOR/LOC Balanced Loop Antenna
  • Assures omnidirectional radiation pattern at the horizon to obtain maximum signal for standard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters up to 250 mph
  • Phasing coupler enables ease of installation if an access panel is not available or if the vertical stabilizer is so narrow at the point of installation it makes it necessary to install the antenna with both cable leads forward or aft
  • Dual VOR receiver operation is obtained when the antennas are used with the DM H21-1 diplexer



SPECIFICATIONS
Frequency Range: 108-118 MHz VSWR: 5.0:1
Polarization: Horizontal Impedance: 50 Ohms
Radiation Pattern: Omnidirectional Weight: 1.12 lbs (0.51 kg)
Connector: BNC (male) Finish: White
DC Resistance: Open Circuited





DM N48-3 Diagram

Part Number:  Description:
DM N48-3 VOR/LOC Balanced Loop Antenna



DM N48-3
- Antenna

NSN: 5821-00-721-4303

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
