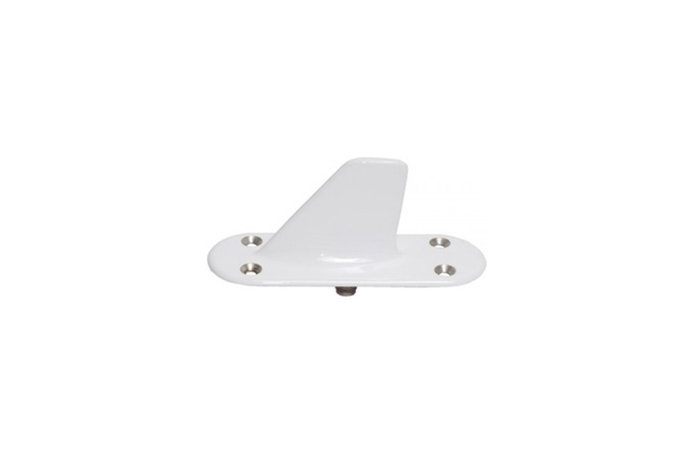

Picture of product DM NI50-9-2

Part #: DM NI50-9-2

NSN:

5985-01-573-0299

OEM:

L3Harris

Desc:

Transponder Antenna

Part Number :
L3Harris Logo


DM NI50-9-2

FEATURES
  • DM NI50 antenna are directly interchangeable with virtually all L-Band blade and flush mounting antennas currently in service on commercial and military aircraft.
  • The DM NI50 antennas, which replace the DM NI49 antennas, are used with all standard L-Band equipments because of theirvery broad bandwidth of 960 to 1,220 MHz
  • Extremely high side load strength guards against breakage by ground handling gear
  • Completely sealed construction prevents failure from moisture intrusion.
  • Lightning protection circuits prevent damage to antenna and safeguard electronic equipment.



SPECIFICATIONS

fREQUENCY RANGE: 960 – 1220 MHz gAIN: Average at horizon 0 dB
vSWR: 960 – 1220 less than 1.7:1 1000 – 1100 less than 1.5:1 POLARIZATION: Vertical
IMPEDANCE: RF 50 Ohms dc Short Circuit POWER: 3 kW peak 100 W peak
WEIGHT: 4 oz SIDE LOAD: Will withstand 175 lbs
FAA: (ATC Transponder) TSO-C74 (DME) TSO-C66a ARINC: (ATC Transponder) 532 E (DME) 521 D
Part Number: Description:
DM NI50-9-2 Dorne Margolin-Transponder Antenna





DM NI50-9-2
- L-Band DME/Transponder Antenna

NSN: 5985-01-573-0299

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
