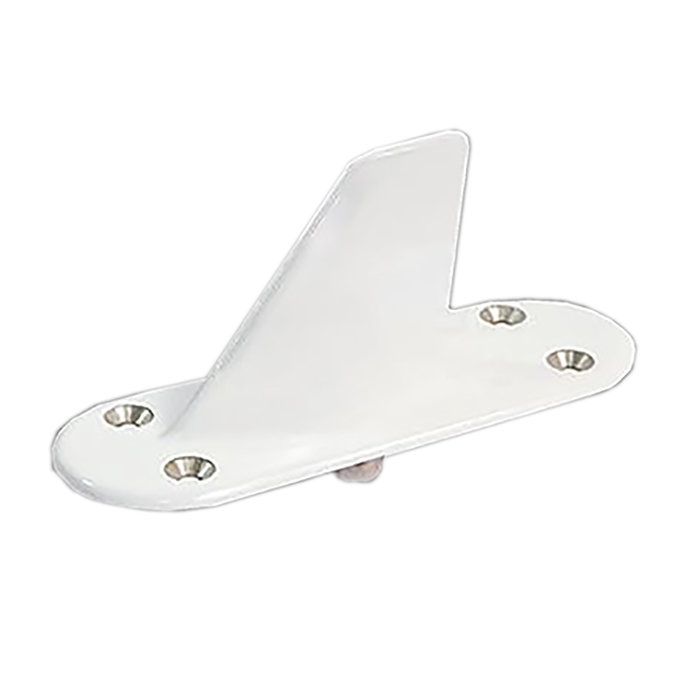

Picture of product DM NI24

Part #: DM NI24

NSN:

5985-00-732-9651

OEM:

L3Harris

Desc:

L-Band Blade Antenna

Part Number :
L3Harris Logo


DM NI24



FEATURES

  • L-Band Blade Antenna
  • Ideal for commercial as well as military application
  • Radiating element is encapsulated in an epoxy dielectric body by a transfer molding process
  • Antenna is impervious to moisture penetration either by direct immersion or by extended exposure to high-humidity conditions
  • Interlocking mounting base and radiating element, molded into the dielectric body, are a completely unified, integral, and rugged assembly
  • Antenna has been used with various equipment such as DME, IFF, TACAN, TELEMETRY, and BEACON



SPECIFICATIONS
Frequency: 849-1220 MHz VSWR: 0.85 to 0.90 (1.4:1) 0.90 to 1.10 (1.7:1) 1.10 to 1.22 (2.0:1)
Gain: Typically within 0.5 dB of a matched I/4 stub Polarization: Vertical
Power: 100 Watts average 4.0 kW peak Radiation Patterns: Similar to I/4 stub
Connector: N (female) Weight: 6 oz.
Aero Drag: 13 oz. sea level, Mach 0.5 30 oz. sea level, Mach 0.8 ARINC: 532 D (ATC Transponder) 521 D (DME)
FAA: TSO-C66 (DME) TSO-C74 (ATC Transponder) ENV. CAT.: ABAXXXXCL1

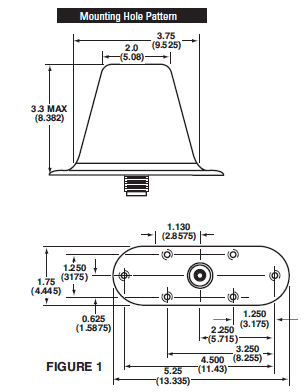

DM N48-3 Diagram

Part Number:  Description:
DM NI24 L-Band Blade Antenna



Serial # 99530
Condition NEW
Mods -
Tag Date 06/10/24
Shop L3Harris Technologies Inc.
Warranty 1 Year
Serial # 99532
Condition NEW
Mods -
Tag Date 06/10/24
Shop L3Harris Technologies Inc.
Warranty 1 Year
DM NI24
- L-Band Blade Antenna

NSN: 5985-00-732-9651

Price Condition Status
$900.00 NEW OUTRIGHT 2 IN STOCK
