NSN: |
|
OEM: |
L3Harris |
Desc: |

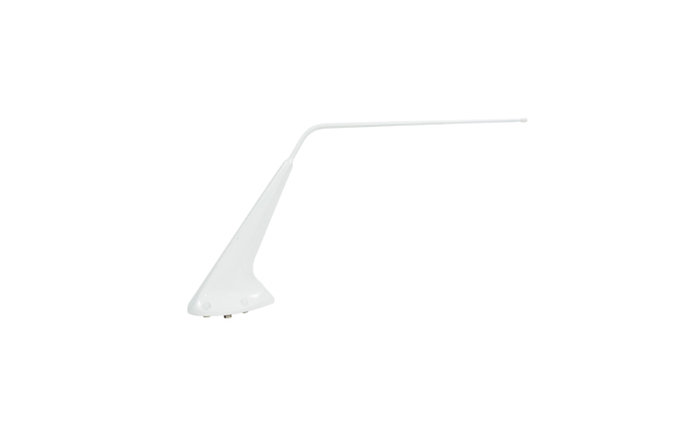

VHF Comm Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
SPECIFICATIONS
Frequency Range: | 118-137 MHz | VSWR: | 2.0:1 (-1/A, -3, -6, -9) 2.5:1 (-4) |
Polarization: | Vertical | Power: | 50 Watts |
Impedance: | 50 Ohms | Radiation Pattern: | Omnidirectional |
Connectors: | BNC (Female) | Weight: | 12 oz |
Height: | see below | Finish: | White polyurethane |
Speed Rating: | 400 MPH (-1/A, -4, -6, -9) 250 MPH (-3) | Environmental Category: | F2-ABCXWFDXSXXXXXXXXXX |
TSO: | C37d, C38d |
Part Number: | Description: |
---|---|
DM C70-1/A | VHF Comm Antenna, Height: 15.00" |
DM C70-3 | VHF Comm Antenna, Height: 20.50" |
DM C70-4 | VHF Comm Antenna, Height: 8.90" Bentback design |
DM C70-6 | VHF Comm Antenna, Height: 15.00" Alternate mounting hole pattern and connector location (see diagram above) |
DM C70-9 | VHF Comm Antenna, Height: 15.00" Alternate mounting hole pattern and connector location (see diagram above) |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
