No image available for DM C70-3

Part #: DM C70-3

OEM:

L3Harris

Desc:

VHF Comm Rod Antenna

Part Number :

L3Harris Logo


DM C70 Series

FEATURES
  • VHF Communication Antenna
  • Designed for top or bottom installation on high-performance, single, twin, and turbo engine fixed and rotary wing aircraft
  • High mechanical strength and electrical efficiency
  • Full 360/720 channel transceiver operation
  • Lightweight profile
  • Resists icing
  • Low drag
  • DM C70-3 is directly interchangeable with C598501-0104, VF 10-210, CI 109, and CI 121
  • DM C70-4 is specifically designed for bottom installations where ground clearance does not permit the use of other DM C70 series antennas
  • DM C70-4 provides a higher degree of efficiency
  • DM C70-6 and DM C70-9 variants of DM C70-1/A have a different mounting hole pattern and connector location (see diagram below)



SPECIFICATIONS
Frequency: 118-137 MHz VSWR: 2.0:1 (-1/A, -3, -6, -9) 2.5:1 (-4)
Polarization: Vertical Power: 50 Watts
Impedance: 50 Ohms Radiation Pattern: Omnidirectional
Connectors: BNC (Female) Weight: 12 oz
Height: see below Finish: White polyurethane
Speed Rating: 400 MPH (-1/A, -4, -6, -9) 250 MPH (-3) Environmental Category: F2-ABCXWFDXSXXXXXXXXXX
TSO: C37d, C38d

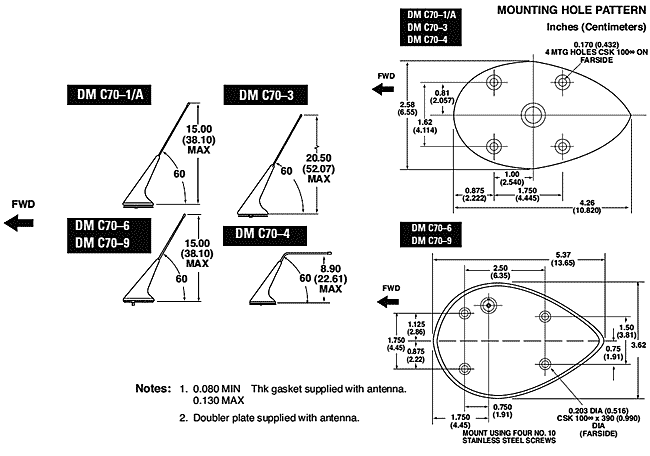

DM C63-3A Diagram

Part Number VHF Communication Antenna Description:
DM C70-1/A Height: 15.00"
DM C70-3 Height: 20.50"
DM C70-4 Height: 8.90" Bentback design
DM C70-6 Height: 15.00" Alternate mounting hole pattern and connector location (see diagram above)
DM C70-9 Height: 15.00" Alternate mounting hole pattern and connector location (see diagram above)



DM C70-3
- VHF Comm Rod Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
