Part #: 501-1296-06

Model: AI-804BA

OEM:

L3Harris

Desc:

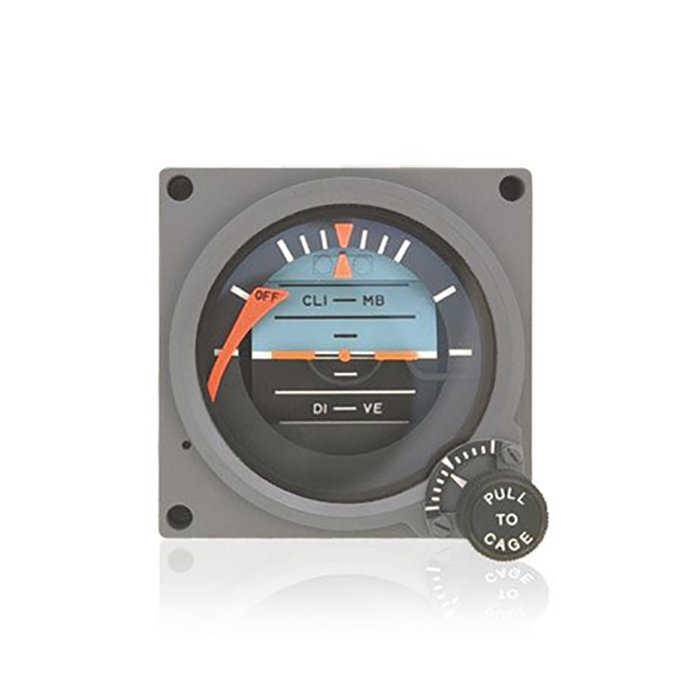

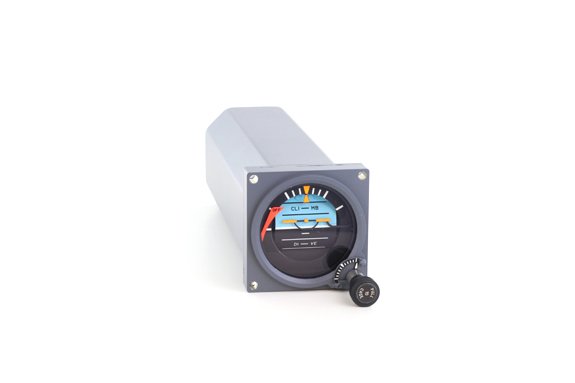

Attitude Indicator

Part Number :
L3Harris Logo



AI-804BA
FEATURES
  • Compact self-contained standby attitude indicator
  • Used in conjunction with backup battery power supply such as PS-835D
  • Self-contained lateral and fore/aft acceleration compensation
  • Up to nine minutes of usable attitude information after complete power loss
  • 28 VDC operation
  • 360° Roll, 360° Pitch with controlled precession
  • Red or white internal lighting
  • Manual caging for fast, reliable alignment
  • Power Off warning flag
  • TSO-C4c



SPECIFICATIONS
Dimensions: 2.40"H x 2.40"W x 6.85"L (AC Powered Units) 2.40"H x 2.40"W x 7.61"L (DC Powered Units) 2.40"H x 2.40"W x 7.73"L (Models AI-804AV, BB, BC, BE, BJ, BK, BM, CP, CV, CY, DA, DB, DD, DH, and DK) 2.40"H x 2.40"W x 8.14"L (Model AI-804CU) Weight: 2.7 lbs. max
Part Number: Description:
501-1XXX-XX Attitude Indicator



Serial # 9000
Condition NEW
Mods -
Tag Date 05/04/15
Shop L-3 Communciations
Warranty 1 Year
501-1296-06
- Attitude Indicator
Price Condition Status
REQUEST NEW OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No, not all and they could be damaged if you do.

Many legacy electromechnical attitude gyroscopic instruments include a caging device to hold the gimbals in place and 'force' the gyro gimbals to return to their home position. This instantly erects or resets the unit by pulling the caging knob. Some caged gyros include a cage lock mechanism, some do not. Some people believe that a cage-able gyro should always be in the locked position when handling, transportation, or storage takes place. This is not always the case.

For example, L3, manufacturers of the legacy AIM gyro product line, specifically indicate in their installation manuals and service letters that "instruments without cage locking mechanisms are designed to be shipped in an uncaged condition...using external locking devices to cage the indicator may result in damaging the caging system...". Southeast Aerospace has seen many people use external means to force a cage lock such as a spacer wedged between the extended shaft and knob. As indicated by L3 (AIM), this could very well damage the unit since you are forcing it to do something it might not have been made to do.

Most, if not all, gyro manufactures have detailed instructions within their installation and operation manuals that indicate how a specific model instrument should be handled, transported, and stored. This includes instructions on whether or not to cage lock the instrument or not. Always follow the manufacturer's instructions.

(Cage-able but does not have cage lock locking mechanism)



(Cage-able but has cage lock)
