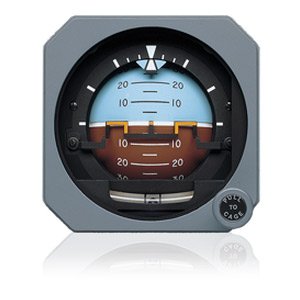

Picture of product AI-330J

Part #: 501-1568-09

Model: AI-330J

OEM:

L3Harris

Desc:

Attitude Indicator

Part Number :
L3Harris Logo

AI-330
FEATURES
  • Self-Contained 3" Attitude Indicator
  • Direct mechanical linkage eliminates electrical servo response lag
  • 28 VDC operation (18 to 30 VDC)
  • ARINC 408A 3ATI clamp mount (flange mount available)
  • Self-contained lateral and fore/aft acceleration compensation
  • Blue/white internal lighting
  • Design compatibility with EFIS displays
  • Power Off warning flag
  • TSO C4c



SPECIFICATIONS
Dimensions: 11.220"L X 3.275"H x 3.275"W (Models B, BJ) 10.735"L x 3.260"H x 3.000"W (Models E, H, N, P, AA, AK) 10.845"L x 3.395"H x 3.935"W (Models R, S) 10.835"L x 3.395"H x 3.395"W (Models T, V, BE) 10.845"L x 3.420"H x 3.420"W (Model AU) 10.735"L x 3.530"H x 3.530"W (Model AH) 10.750"L x 3.275"H x 3.275"W (Models A, C, D, F, G, J, K, L, M, U, W, X, Y,AB, AC, AD, AE, AG, AL, AP, AR, AS, AT, AW, AY, AZ, BA, BB, BH, BK, BL, BM) (Length includes connector J1 and caging knob in caged position) Weight: 3.5 lbs. maximum
Part Number Attitude Indicator Description:
501-1568-XX Part Number Chart



501-1568-09
- Attitude Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
