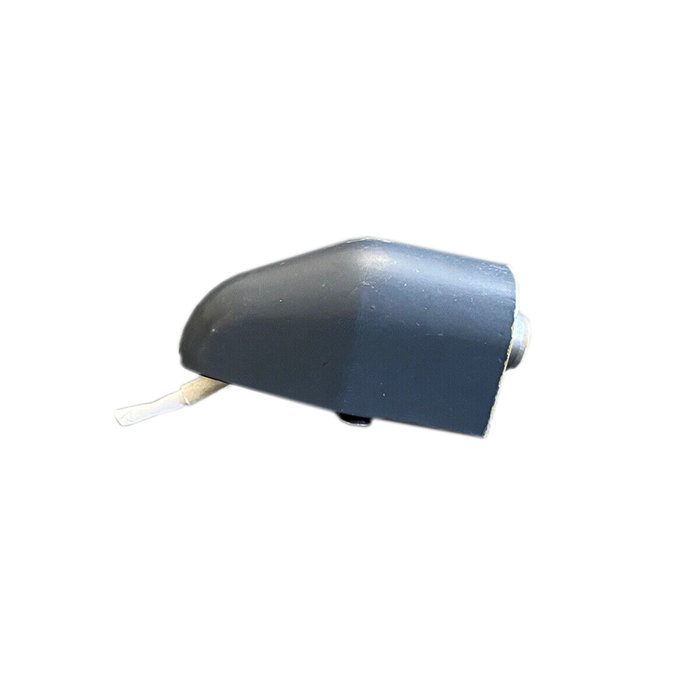

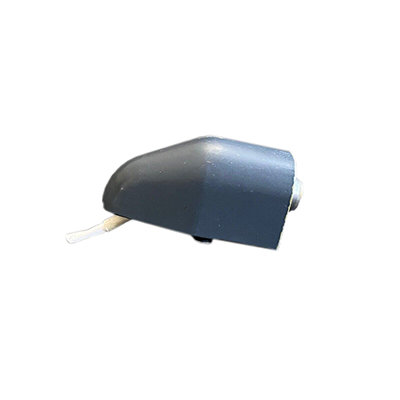

Picture of product A55B

Part #: 93A055-60

Model: A55B

OEM:

L3Harris

Desc:

CVR Microphone

Part Number :

L3Harris Logo




A55B

FEATURES
  • Remote microphone module used with A151/B Control Units in A100/A CVR Systems
  • Condenser type microphone
  • Available in black, gray, or brown color (see table below)
  • Available with rear, side, or pigtail type connector configuration (see table below)



PIGTAIL SPECIFICATIONS
SIZE: 2 1/2" L x 1-1/10" W x 1-1/5" H WEIGHT: 4 oz.
connector: Shield Twisted pair pigtail microphone: Consender



CANNISTER  SPECIFICATIONS
SIZE:                                    3.76" L x 2" W x 2.25" H (w/Side Connector)  4.07" L x 2" W x 2" H (w/ Rear Connector) WEIGHT: 0.5 lbs.
Mounting: Front or Rear Panel microphone: Consender







Part Number: Description:
93A055-10 Black panel color, rear connector location
93A055-20 Black panel color, side connector location
93A055-30 Brown (Boeing) panel color, rear connector location
93A055-40 Gray panel color, pigtail connector location
93a055-45 Brown (ATR-42), Pigtail connector
93A055-50 Black panel color, rear connector location
93A055-55 Black panel color, side connector location
93A055-60 Gray panel color, pigtail connector location
93A055-65 Brown (ATR-42) panel color, pigtail connector location
93A055-66 Gray panel color, pigtail connector location
93A055-67 Black panel color, pigtail connector location (Interchangeable with -95; orig. available as separate unit)
93A055-95 Black panel color, pigtail connector location (Interchangeable with -67; rig. available in GA100 CVR kit)



PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET









Serial # 44801U
Condition SVC
Mods -
Tag Date 06/10/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
93A055-60
- CVR Microphone
Price Condition Status
$500.00 SVC OUTRIGHT 1 IN STOCK
93A055-20
- CVR Microphone
Price Condition Status
RFQ RFQ RFQ
93A055-40
- CVR Microphone

NSN: 5965-01-227-3689

Price Condition Status
$550.00 SV OUTRIGHT REQUEST LEAD TIME
93A055-95
- CVR Microphone (Pigtail)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
