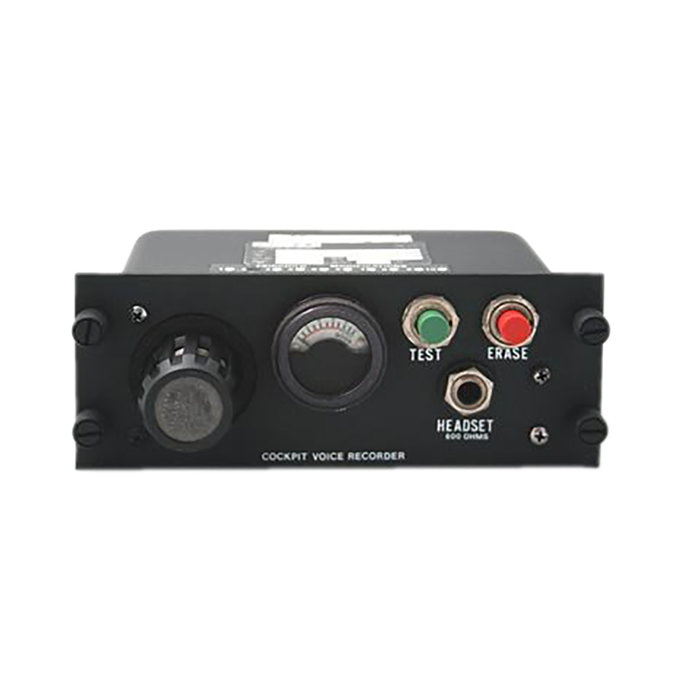

Picture of product A152

Part #:

Model: A152

OEM:

L3Harris

Desc:

CVR Control

Part Number :
L3Harris Logo


A152
FEATURES
  • Cockpit Voice Recorder Control Unit for use with A100/A series CVR systems
  • Contains Dynamic Control Area Microphone, Microphone Preamplifier Board Assembly, headset jack, ERASE and TEST switches, and test meter
  • Test meter makes it possible to test monitor and bulk erase tape remotely
  • Available with black or gray panel color (see table below)
  • Available with 5 or 28 Volt or No meter illumination (see table below)
  • Similar to A152B control unit but contains dynamic instead of condenser microphone



SPECIFICATIONS

Size: ATA Panel; 5.5"W x 2.5"H x 2.5"D Weight: 1.2 lbs.
AGC: Fast reacting 30-dB range-low distortion, true ac attenuation Audio Input Impedance: 20K ohms
Audio Input Level: 3 millivolts Output Impedance: 300 ohms
Output Level: 500 millivolts Audio Gain: Pin selected 6,12,24 dB steps
DC Supply: +18 volts
Part Number: Description:
93A152-00 Gray panel color, dynamic mic, no meter illumination
93A152-01 Black panel color, dynamic mic, 28V meter illumination
93A152-04 Gray panel color, dynamic mic, 5V meter illumination



93A152-00
- CVR Control Unit

NSN: 5835-00-019-1816

Price Condition Status
RFQ RFQ RFQ
A152
- CVR Control

NSN: 5835-00-019-1816

Price Condition Status
$375.00 OH OUTRIGHT REQUEST LEAD TIME
