Part #: 504-0045-904

Model: 510-35D

OEM:

L3Harris

Desc:

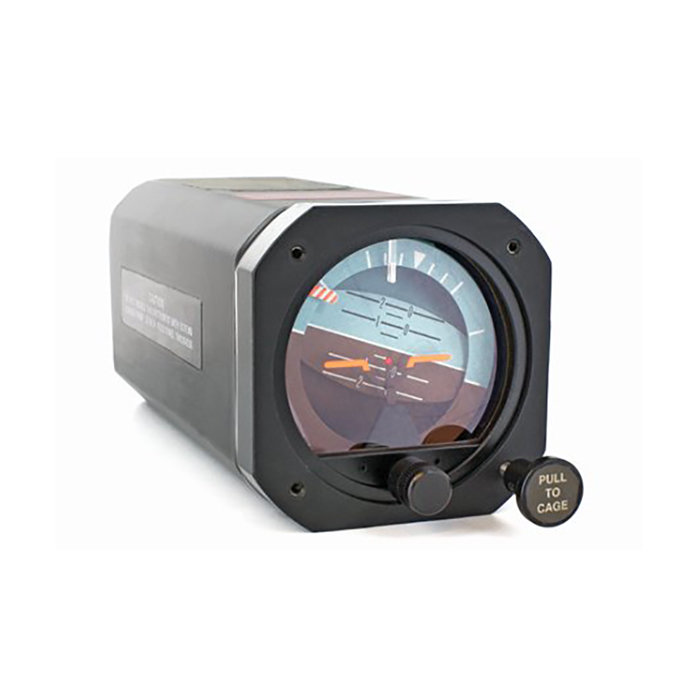

Attitude Gyro

Part Number :

L3Harris Logo



510-35D

FEATURES

  • 3" Backup Attitude Gyro
  • Input Power: 28 VDC
Part Number: Description:
504-0045-904 Attitude Gyro, superseded by 1200-6R(5B)



504-0045-904
- Attitude Gyro
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

When an order is placed for an attitude gyro, it is important that the following information be given:
  • Instrument model number
  • Aircraft voltage (14VAC or 28VAC)
  • Panel tilt angle
  • Lighted or unlighted #lighting voltage)
  • Fixed or movable pointer
  • Optional slip indicator

Note: There is an extra charge to reset the tilt angle after purchase.
Panel tilt refers to the tilt angle of an aircraft's panel. The tilt angle is any deviation from the vertical axis of the control panel in level flight. When ordering an attitude gyro indicator, it is very important to know the tilt angle of the aircraft panel. Check your aircraft equipment manual or inspect the labeling on the side of your gyroscope. Installing the incorrect angle will cause the horizon to show a climb or a dive.
If panel tilt is not known, the manufacturer of the aircraft should be able to provide that information. An attitude gyro indicator can be calibrated for a panel tilt from 0-14 degrees and should be specified when ordering. A label is attached to the gyro to indicate the tilt calibration of each unit. If a newly installed attitude gyro settles more than ± 1½ degrees pitch above or below where the expected horizon should be, then panel tilt or aircraft trimming issues should be suspected.
