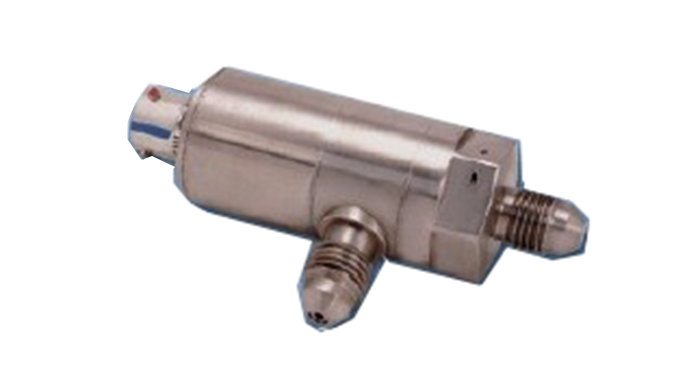

Picture of product APTE-51HL-1000

Part #: APTE-51HL-1000

OEM:

Kulite

Desc:

Aircraft Differential Pressure Transducer

Part Number :

Kulite Semiconductor Products - Discover the mini site Kulite Semiconductor  Products

APTE-51HL-1000



FEATURES

  • Developed For Use With High Line Pressure Compared To Low Differential Pressure
  • Measures Pressure Drop To Monitor Filter Clogging
  • High Natural Frequencies
  • Stable And Reliable To High Temperatures
  • Leakproof, All Welded Construction (No Leak After Exposure To 2000°F  1093°C)
  • Fully Qualified (Passed Extensive Environmental Tests, RTCA/DO-160F)



SPECIFICATIONS
Pressure Range: 1.7, 3.5, 7, 17 BAR, 25, 50, 100, 250 PSI Humidity: 100% Relative Humidity
Output: Amplified: 5VDC Diff. or Single Ended Output: Unamplified: 100mV (Typ.)
Power Consumption: Amplified: 280mW (Typ.) Power Consumption: Unamplified: 100mW (Typ.)
Input Impedance: Amplified: N/A Input Impedance: Unamplified Apt-Series: 1000 Ohms (Min.)
Output Impedance: Amplified: 100 Ohms (Max.) Output Impedance: Unamplified Apt-Series: 2000 Ohms (Max.)
Operating Temperature Range: Amplified: -65°F to +250°F (-55°C to +120°C) Operating Temperature Range: Unamplified Apt-Series: -65°F to +300°F (-55°C to +150°C)
Weight: Amplified Apte Series: 0.6 Lb. (Max.) Weight: Unamplified Apt-Series: 0.45 Lb. (Max.)
MTBF: At Least 30,000 Hours Fluid Temperature: -65°F to +300°F (-55°C to +150°C)
Vibration: RTCA/DO-160F, Sec 8, Cat R, D & D1 Random Vibration Curves Altitude-Operating: Up To 51,000 Feet
Mechanical Shock: RTCA/DO-160F, Sec 7, Cat B, 20g, 11 msec sawtooth shock

Part Number: Description:
APTe-51hl-1000 Aircraft Differential Pressure Transducer



APTE-51HL-1000
- Aircraft Differential Pressure Transducer
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
