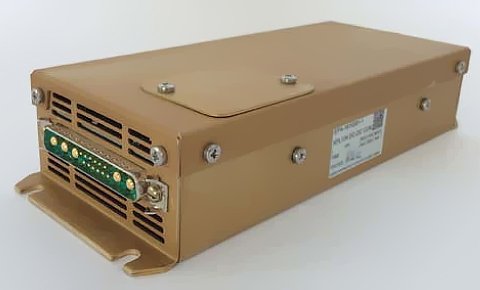

Picture of product KPL124

Part #: 1619381-1

Model: KPL124

OEM:

Kuerzi Avionics

Desc:

Multi-Output Converter

Part Number :
Davtron Logo

KPL124
FEATURES
  • Three converters in one unit
  • Transforms power from a wide input voltage range of 10VDC - 48VDC
  • Selectable output voltage which is pin programmable to 5VDC, 14VDC, 28VDC
  • Electronic output current limitation is selectable by placing a module
  • Power input is protected by an internal 30A fuse
  • Selectable output limitation from 5A - 40A
  • Combination of maximum output power and minimum input voltage will always be set so that the input current stays below the fuse value
  • Light weight of 0.6 kg
  • Efficiency up to 93%
  • Meets aviation standards and requirements, delivered with an EASA Form 1
  • Certification data will be delivered upon request
SPECIFICATIONS
Size: 84.2 mm W x 44.4 mm H x 211 mm L Weight: 0.60 Kg / 0.62 Kg with installation materials
Emission of radio frequency energy: DO-160G Section 21 Cat. M, H, P, Q Fire, Flammability: Proven avionics material in metallic casing
Part Number converter Description:
1619381-1 DC DC Converter



1619381-1
- Multi-Output Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
