Part #: 102-0041-04

Model: RCA22-7

NSN:

6605-01-235-6059

OEM:

Kelly Mfg.

Desc:

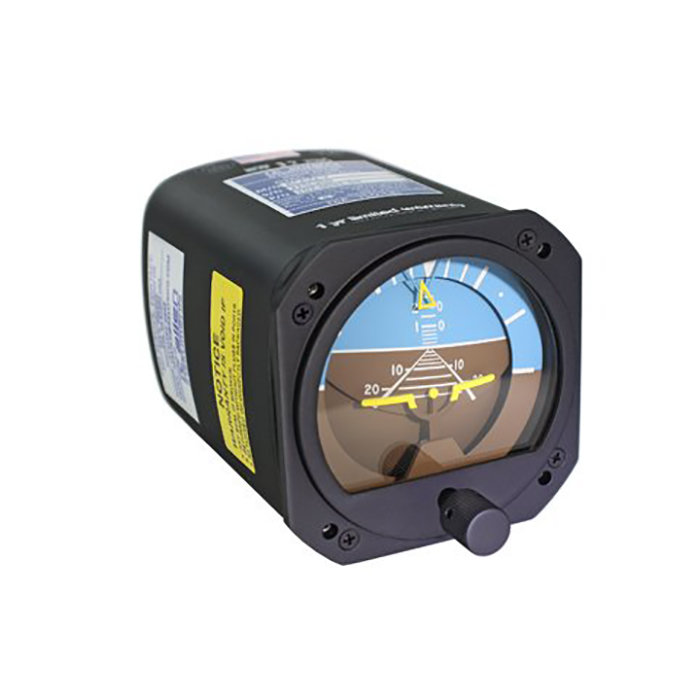

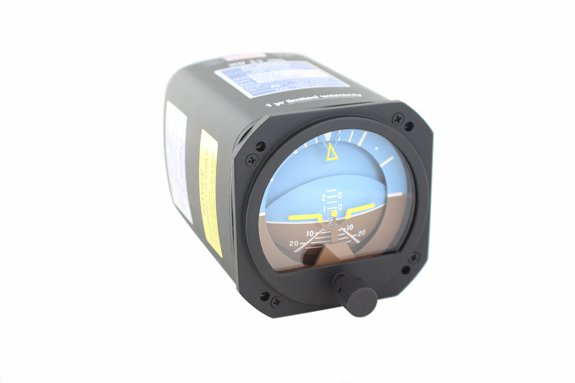

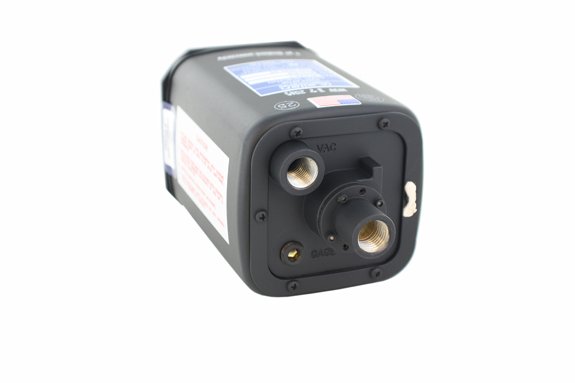

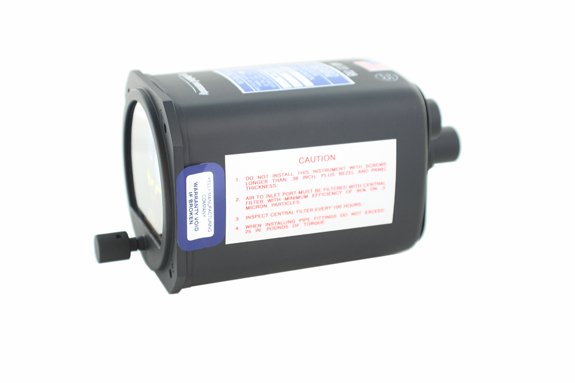

Vacuum Horizon Gyro (Standard)

Part Number :
Kelly Manufacturing Logo



RCA22-7



FEATURES
  • 3 Inch Vacuum driven horizon gyro indicator
  • Standard display
  • Will operate from Venturi tube or aircraft vacuum system
  • Lightweight at 2.9 lbs
  • FAA TSO C4c
  • Specify panel tilt angle when ordering



SPECIFICATIONS
Vacuum: Starting = 2" of Hg max; Operating = 4-6" Hg Air Consumption: 1.2 cu. ft/min
Altitude: Up to 40000 ft. Dimensions: 3.375"H x 3.375"W x 4.70"L
Bank Indication: 360 degree unlimited Pitch Indicator: +- 85 degree minimum
Part Number Horizon Gyro Description:
RCA22-7 Standard unit, specify panel tilt
RCA22-7F Standard unit, specify panel tilt, power failure flag
RCA22-8 Standard unit, 6 degree panel tilt
RCA22-11 Standard unit, specify panel tilt, with lighting- specify voltage
RCA22-11F Same as -11 with power failure flag
RCA22-13 Standard Cessna unit with blue/black display
RCA22-15 Standard Piper unit with blue/black display
RCA22-17 Standard Cessna unit with blue/black display & marked "Air"
RCA22-24 Standard Aerospatiale Cessna unit with 14 volt lighting & 6 degree tilt



102-0041-04
- Vacuum Horizon Gyro

NSN: 6605-01-235-6059

Price Condition Status
$1,095.00 NEW OUTRIGHT DUE IN
