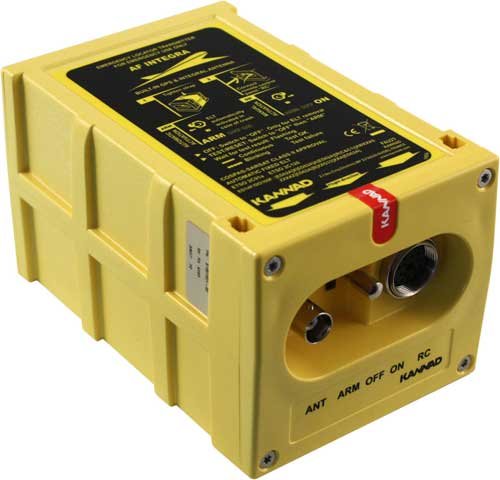

Picture of product INTEGRA AF

Part #: S1851501-02

Model: INTEGRA AF

OEM:

Kannad

Desc:

ELT (Unit only)

Part Number :

FOR REFERENCE ONLY



INTEGRA AF
FEATURES
  • Automatic Fixed Emergency ELT with G-Switch sensor
  • Two-frequency ELT (121.5 / 406 MHz)
  • COSPAS-SARSAT Class 2
  • Small & light ELT
  • Internal GPS
  • Unique internal 406MHz back-up antenna
  • Programming dongle
  • Maximum reliability, minimize size/weight
  • ARM/OFF/ON switch, red LED, Internal Buzzer & Outside Buzzer option
  • Operates at temperature as low as -20ºC with 24 hour certified transmission on 406MHz (distress) signal and over 48 hours on 121.5MHz (homing) signal
  • No power supply required
  • Battery replacement interval every 6 years, accessories directly powered by ELT battery
  • Choice of Remote Control panels with 3-wire & 2-wire installation options
  • DIN12 socket for remote control panel (RCP) and pin programming dongle option, BNC antenna connector
  • Quick & easy retrofit with universal mounting bracket
  • EASA minor change approval available for most common aircraft
  • Option to connect to a panel-mounting GPS using the NMEA Integra e-Nav
  • TSO/ETSO Approved: TSO C126A, C142a / ETSO 2C91a, 2C126, C142a
  • Aircraft/Helicopter, Fixed/Portable/Pack versions available, see P/N chart below

In order to ship hazardous materials (HAZMAT) the shipper must have HAZMAT certified personnel. SEA will provide HAZMAT paperwork along with proper packaging and labeling for shipments directly to our customers.  If the shipment must be sent to another location such as a freight forwarder, SEA will provide the HAZMAT paperwork to the original ship to address only. Please contact your freight forwarder prior to ordering to verify that they are HAZMAT certified.  SEA is not responsible for issues that arise if your freight forwarder does not have HAZMAT qualified personnel.



SPECIFICATIONS
Material: Molded Plastic Color: Yellow
Dimensions: 6.89" x 3.9" x 3.4" Weight: Typical 1.873lbs
Max 1.929 lbs
(includes batteries)
Part Number ELT Description:
S1851501-02 Aircraft Fixed (AF) Version
S1852501-02 Helicopter Fixed (AF-H) Version
S1850501-02 Aircraft Portable (AP) Version
S1854501-02 Helicopter Portable (AP-H) Version
1202502 Aircraft Pack (Pack AF) Version
1202503 Helicopter Pack (Pack AF-H) Version
1001179 Integra Easy, Complete Kit with Integra AF & Rod Antenna
1001180 Integra Easy, Complete Kit with Integra AF & Whip Antenna



Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Long messaging transmits longtitude and latitude.  Short messaging does not.
