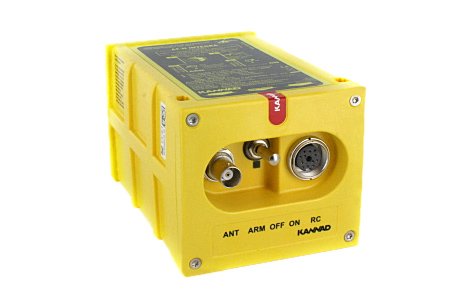

Picture of product INTEGRA 406AF

Part #: 1202502

Model: INTEGRA 406AF

OEM:

Kannad

Desc:

ELT Pack

Part Number :

FOR REFERENCE ONLY



406 AF INTEGRA
FEATURES
  • Automatic fixed two-frequency ELT with G-Switch sensor
  • Integrated 406 MHz antenna
  • Built-in GPS
  • No external power supply required
  • Two wire compatability when installed with optional control panel
  • Minor change approval available for most common aircraft
  • Operates at temperatures as low as -20°
  • -40°C version available for mounting outside pressurized fuselage (ER Version)
  • Optional (additional) programming dongle, perfect for fleet operators
  • Shock sensor will automatically activate the ELT in the event of a crash
  • Once activated, transmits continuously for over 24 hours on a 406MHz (distress) signal and over 48 hours on a 121.5MHz (homing) signal
  • Quick and easy retrofit with optional universal mounting bracket
  • Built-in alarm/buzzer
  • Completely self-powered by the ELT battery
  • COSPAS - SARSAT Class 2
  • Should the ELT's internal GPS be unable to receive a signal, Kannad offers the NMEA INTEGRA e-Nav (PN: S1820514-08) as an additional option to provide an interface to the aircraft's panel mounted GPS
  • 10 year warranty for Integra ELTs purchased after April 20, 2016. To qualify for the additional warranty, owners must register their ELT with McMurdo
