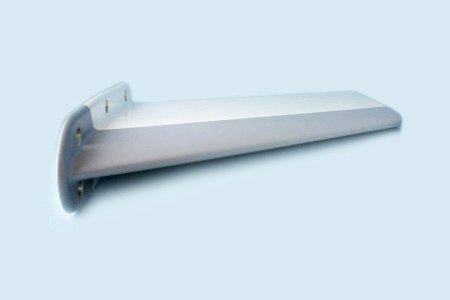

Picture of product ANT650

Part #: 0124251

Model: ANT650

OEM:

Kannad

Desc:

Blade Antenna (White)

Part Number :

FOR REFERENCE ONLY



ANT-650 Manufactured by Chelton
FEATURES
  • ELT Blade Antenna
  • Transmits emergency signals on the 121.5, 243 and 406 MHz international frequencies
  • Designed for wide body commercial aircraft as well as general aviation
  • Low drag, inclined blade radome
  • Hermetically sealed
  • The leading edge of the radome is coated with anti-corrosion treatment highly resistant to sand and dust
  • Installed on AIRBUS A330 and A340
  • BNC Connector
  • Gloss white, polyurethane finish
  • DGAC/ED 14C (DO160C), ED62 certifications



SPECIFICATIONS
Frequency Range: 121.5, 243 & 406 MHz Height:  9.84"
VSWR (relative to 50Ω):  ≤2:1  Operating Temp:  -55°C to +70°C
Radiation Pattern:  Similar to quarter wave monopole Altitude:  70,000 ft
Polarization:  Vertical Power Handling: 10W CW
Lightning Protection:  DC grounded Weight: 1.322 lbs.
Part NumberBlade Antenna Description:
0124251 See Above



Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Programming Dongle (P/N S1820514-06) is a portable memory module that contains the identification information for an aircraft. This dongle usually remains on board the aircraft and allows for an unprogrammed ELT to quickly be programmed with the aircraft identification information. The dongle is programmed via PC interface by an Kannad authorized distributor or shop.

The PR600 Programming Adapter (P/N 1201570) is the computer interface adapter needed to program the ELT usually on a bench type setup. Authorized Kannad programming training is required to utilize the PR600 for programming ELTs.
