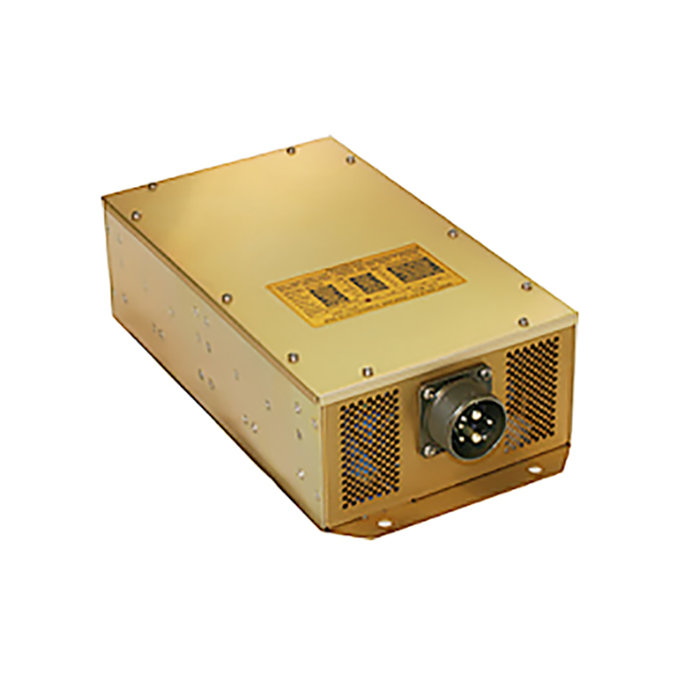

Picture of product SS120(C)

Part #: SS120C

Model: SS120(C)

OEM:

KGS

Desc:

Static Inverter

Part Number :



FEATURES

  • Crystal-controlled oscillator
  • Pulse-width-modulated
  • Square to sin wave power conversion scheme
  • Efficient and reliable operation
  • Output frequency stability
  • Remote On/Off



SPECIFICATIONS

weight: 7.7 lbs. Dimensions: 6.34 x 9.5 x 3.4 in
Input voltage: 28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range Input current: 50 ADC (nominal) at FL (1200VA & 28 Vdc Input) .5 ADC (nominal) at No Load
Output voltage: 115 VAC (108 TO 120 VAC) Output frequency: 60 Hz
Output current: 10.3 AAC Output power: 1200 VA
Output wave form: Sine Harmonic distortion: 0.5 % (nominal)
Power factor: +0.8 TO -0.8 Output phase: Single
Efficiency: 87% (nominal) Response time: 300 uSec (No Load to Full Load)
Regulation: 1 % Line, 1 % Load, 2.5 % Temperature Operating temperature: -55 ° C to +71 ° C (-65 ° F to +160 ° F)
Altitude: 55,000 ft Cooling: Thermostatically controlled brushless fan (on above 50 ° C)
Remote On-Off: Yes Protection Circuits: The inverter will shutdown under the following conditions: Input voltage > 37.5 ±1 Vdc, Input voltage < 18 Vdc ±1.5 Vdc, Internal high ambient temperature: Short circuit condition (after 2 to 15 sec)(manual reset)
Environmental Test: DO-160C environmental category Compliance: FAA TSO-C73




Part Number: Description:
SS120C Static Inverter









Serial # 211
Condition SV
Mods 1
Tag Date 11/14/24
Shop KGS Electronics
Warranty 6 Months
SS120C
- Static Inverter
Price Condition Status
$2,750.00 SV EXCHANGE 1 IN STOCK
$6,950.00 SV OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
