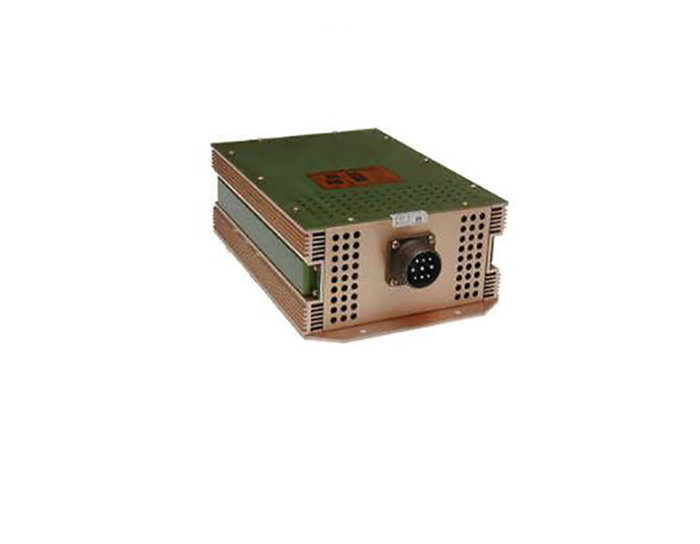

Picture of product SPS206

Part #: SPS-206

Model: SPS206

OEM:

KGS

Desc:

Static Inverter

Part Number :


SPS-206
FEATURES
  • Used as a source of on-board AC power for the operation of audio and video equipment and portable computers
  • Telecommunication equipment in aircraft that have 28 or 14 Volt DC electrical systems
  • For applications requiring greater power these inverters may be paralleled for higher output capacity
SPECIFICATIONS
Dimensions: 7.75"W x 10.2"H x 14.0"L Weight: 15.7 lbs.
Input Voltage: 28 VDC ± 2 volts. Withstands 88 vot transient for 1 millisecond. Input Current: 28 VDC 10.5A
Power factor: .8 to 1.0 Wave Form: Sine Wave
Output Voltage: 115 VAC Phase: Single
Altitude: 55,000 ft. Temperature: -65°F to +160°F (-55°C to +71°C)
amplitude DISTORTION: Less than 7% Certification: 60 Hz Static Inverter Approved under FAA TSO-C73
Short Circuit: Will withstand for 1 minute. power va: 200
FREQuency (±) : 60 Hz



Part Number: Description
SPS-206 Static Inverter



SPS-206
- Static Inverter
Price Condition Status
$2,000.00 OH OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
