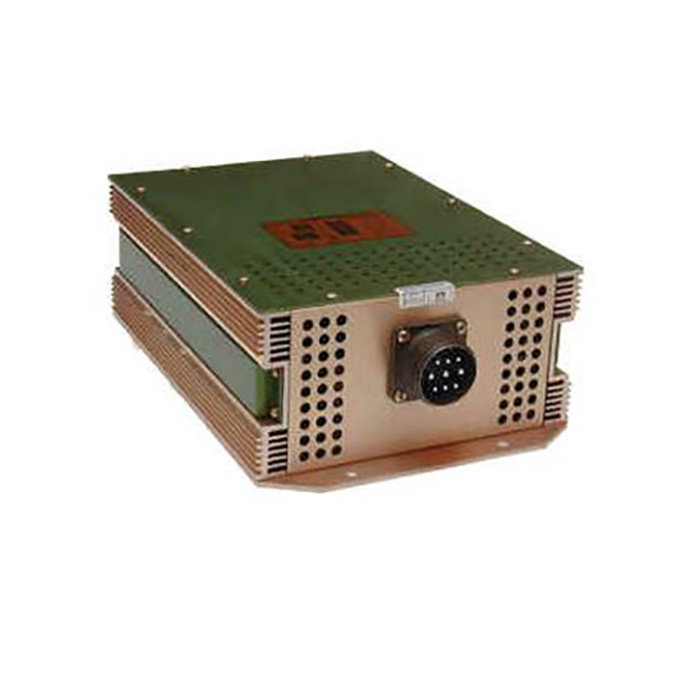

Part #: | SPC-60C |
---|---|
Model: | SPC-60C |
Desc: | Static Inverter |
OEM: | KGS |
NSN: | 6130-01-364-3213 |
---|---|
ECCN: | |
Cage Code: | 16017 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
|
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
Input Voltage: | Nominal 28.0 VDC. ± 2 VDC , Range 22 to 30 VDC | Input Current ADC: | 31 |
Output Voltage: | 26/115 VAC | FREQUENCY: | 400 Hz ± 1% |
output power: | 125/600 | Phase & Waveform: | Single phase sine wave |
power factor: | .8 to -.95 | Amplitude Distortion: | Less than 7% |
Efficiency: | 70% typical | Temperature: | -65°F to +160°F (-55°C to +70°C) |
Weight: | 14.0 lbs (6.4 Kg) | Overload Capacity: | Capable of 150% output current for at least 5 minutes |
input overvoltage: | Withstand 130% input overvoltage for 5 min. while supplying full rated VA output power. Output voltage under this condition 115 VAC + 5% -7% | Input Voltage Protection: | Inverter withstands transients of 88 volts lasting 1 mSec on the 28.0 VDC |
Overload & Output Short Circuit Protection: | Withstand without damage or degradation loads exceeding 150% of rated output to an output short circuit. Inverter delivers rated output on removal of above condition | Altitude: | 55,000 ft |
Humidity: | Tested to greater than 95% for ten days, temperature cycled between 75°F to 160°F | Environmental: | Qualified to meet RTCA DO-160 env. cat. D2BR |
Part Number: | Description: |
---|---|
SPC-60(C) | Static Inverter |
NSN: 6130-01-364-3213
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
