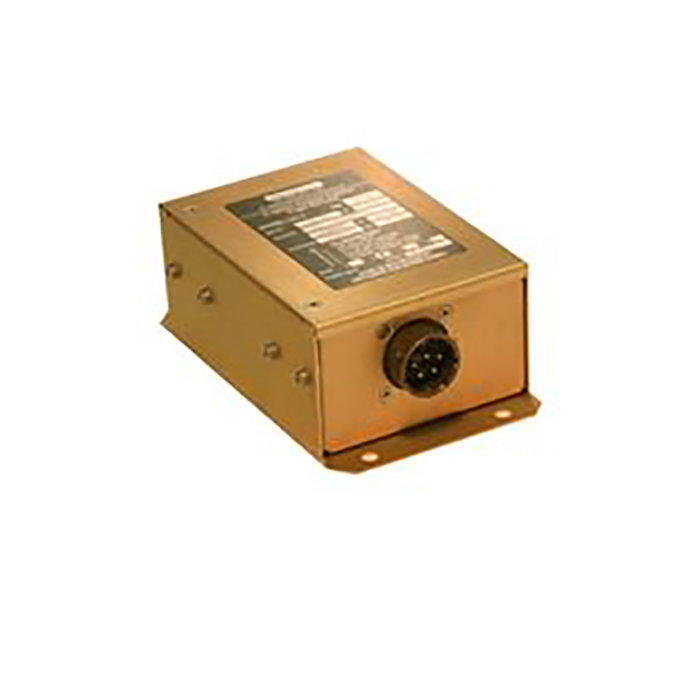

Picture of product SC-3
Part #: SC3
Model: SC-3
Desc: Static Inverter
OEM: KGS
Sched-B: 8504400018
ECCN: 3A225
Part Number :
Price Condition Status More Info
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
Send RFQ
* Price & Availability valid as of 04/05/25 9:41:01 EDT *

Need Repair? - Submit A Request







FEATURES

  • Pulse width modulated DC to AC static inverter that provides regulated 400 Hz AC power up to 30 volt amperes
  • Internal trim pot is provided to adjust the output voltage ± 10%
  • Circuit protection includes low input voltage shutdown
  • Soft start
  • High input voltage shutdown
  • Output over voltage limit and output short circuit current limit



SPECIFICATIONS

Input Voltage: 28 Vdc NOM., 24 to 32 Vdc, 18 Vdc to 36.4 Vdc (Abnormal Range) Input Current: 1.35 Amps typ at 28 Vdc input at FL, 0.6 Amps maximum at no load
Output Voltage: SC3:    115 Vac, SC3(A):  26Vac Output Current: SC3:  .26 Amps continuous
Frequency: 400 Hz ± 1% Distortion (THD): 3% typical at FL (unity pf) at 28 Vdc 7% maximum for the input range & pf
Isolation: Output is isolated from input Power: 30 VA maximum
Power Factor .95 leading to .8 lagging power factor Regulation: 3% for load, 2% for line and 3% for temperature
Overload (OL): Deliver 150% output current for 5 min Temperature: -55° C to +71° C
Compliance: FAA TSO-C73 Connector: Unit mates with MS3106A14-6S
Finish: Gold iridite per MIL-C-5541 Class 1A Protection (OV): Output voltage is limited to 145 Vac maximum
Altitude: 55,000FT Weight: 1 LBS (454 grams)
Size: 2.00 H x 3.18 W x 5.00 L inches, 50.8 H x 80.8 W x 127.0 L mm (Less protrusion of connector and screw heads)
