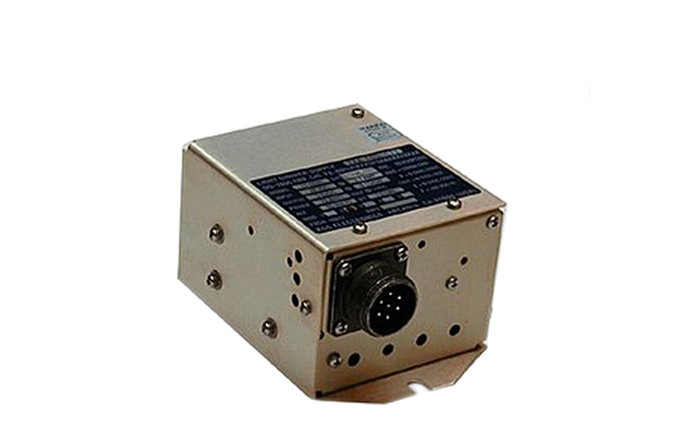

Picture of product LT-55A

Part #: LT-55A

NSN:

6130-01-327-2038

OEM:

KGS

Desc:

Light Dimmer

Part Number :


LT-55A
FEATURES
  • Pulse width-modulated DC to DC converter that provides regulated DC power
  • Transforms an unregulated 28 VDC to a regulated and adjustable DC voltage output via a remote control potentiometer
  • Primarily designed to control the light intensity of incandescent bulbs in aircraft lighting when requiring 0-15 amps at 5 VDC output
  • FAA TSO-C71 recognized for airborne applications
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A



SPECIFICATIONS
Dimensions: 2.6" H x 2. 3.43" W x 5.1" L Weight: 1.2 lbs.
Input Voltage: 28 VDC nom., 2.0 TO 36 VDC Output Voltage: 0 to 5 VDC adjustable: 300 ohm to 10K 1/2W potentiometer
Output Current: 0 - 15 ADC continous Regulation: 2% for line, 2% load and 2% temperature



Output Voltage:
Part Number: Description:
LT-55A Light Dimmer



LT-55A
- Light Dimmer

NSN: 6130-01-327-2038

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
