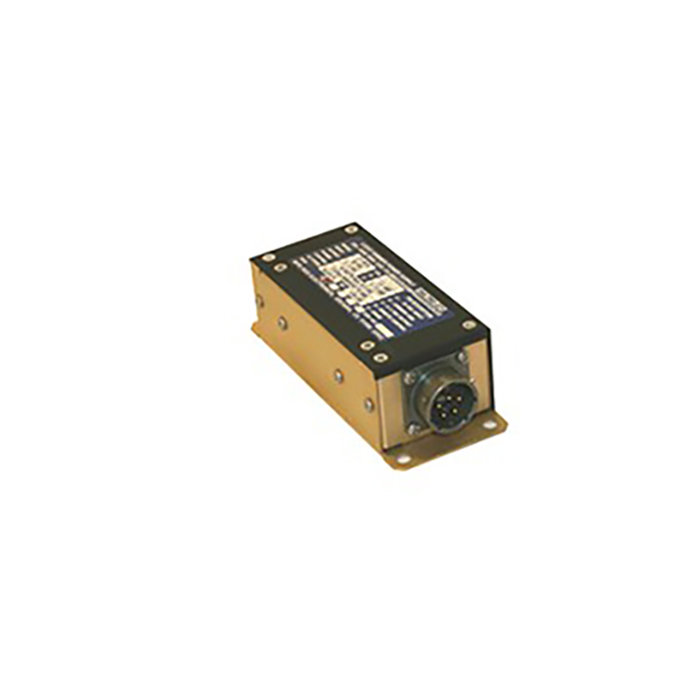

Picture of product LT-48
Part #: LT-48
Model: LT-48
Desc: Regulated DC to DC Power Converter
OEM: KGS
Part Number :

 KGS Electronics





FEATURES

  • LT-4X (Series) is a pulse width-modulated DC to DC converter that provides regulated output power
  • Transforms an unregulated 28 VDC to regulated output power
  • Output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground
  •  LT-4X (Series) is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting
  • State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology).
  • The LT-4X (SERIES) is serviceable, small and lightweight.
  • Maximum output voltage is adjustable with an internal trim pot.
  • Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A
  • Qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters



SPECIFICATIONS

Input Voltage: 28 Vdc NOM. Regulation: 2% for load, 2% for line and 2% for temperature
Weight: 0.6 lbs. (272 grams). SIZE: 1.6" H x 2.0" W x 5.0" L. 4.1 cm H x 5.1 cm W x 12.7 cm L
Temperature: -50°C to +70°C @ mounting flange and at 55,000 ft.MIL-STD-810C Temperature and Altitude,Method 504.1, Proc 1, Cat 5. Altitude: 55,000 Feet
MATING PLUG: MS3126E14-5S RECEPTACLE: KPT02A14-5P
Input Circuit Breaker: 3-5 amp Vout (VDC) Range/ Iout (ADC) Max: 0-5/7.5
Output (Watts): 37.5 Vin (VDC) Range/ lin (ADC) @ 28 VDC: 18-36/ 1.8
Efficiency: 75% typical Compliance: FAA TSO-C71
Protection (Overload): Output current limit when overload exceeds 125% of rating Output Ripple: 8 mVpp typ. @ 25°C,25 mVpp maximum



Part Number: Description:
 LT-48 Regulated DC to DC Power Converter





LT-48
- Regulated DC to DC Power Converter
