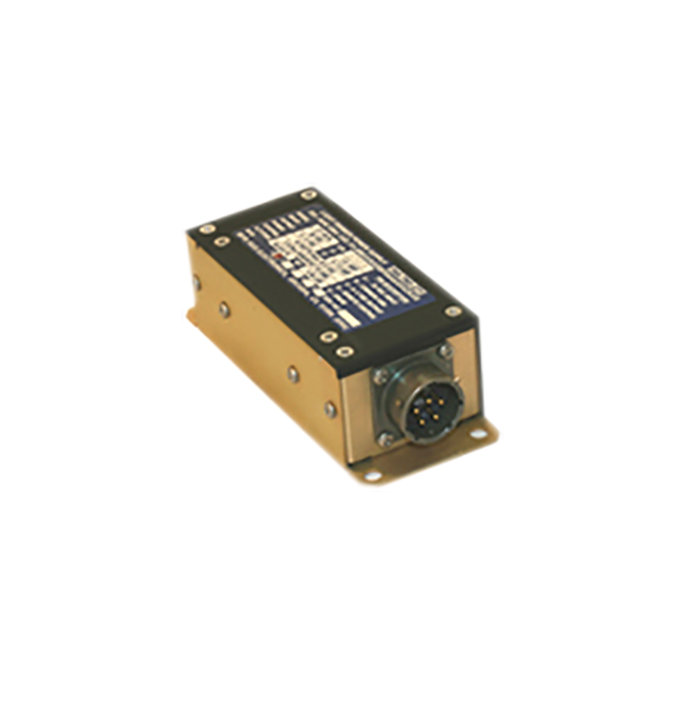

Picture of product LT-46C

Part #: LT-46C

OEM:

KGS

Desc:

Power Converter DC to DC

Part Number :



LT-46C



FEATURES

  • Transforms an unregulated 28 VDC to regulated output power
  • Pulse width-modulated DC to DC converter that provides regulated output power
  • Output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground
  • State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology)
  • The LT-4X (SERIES) is serviceable, small and lightweight
  • Maximum output voltage is adjustable with an internal trim pot
  • Primarily made to control the light intensity of incandescent bulbs in aircraft lighting
  • Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A
  • Qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters



SPECIFICATIONS

Input: 28 VDC nom., 20-36 VDC, 2.2 ADC Weight: 0.6 lbs. (272 grams).
Output: 50 Watts, 12 Fixed VDC, 4.2 ADC COMPLIANCE: FAA TSO-C71
Output CONTROL: Adjustable with external 5k ohm,1/2 W linear pot (rheostat) Regulation: 2% for line, 2% load and 2% temperature
Protection: (Overvoltage)Output voltage is limited to approximately 125% even though remote control rheostat opens or shorts or certain types of internal failures occur Protection: (Overload) Output current limit when overload exceeds 125% of rating
Reverse Polarity: Input has reverse polarity diode in shunt to open 3 to 5 Amp. input C.B.and clip negative transients Efficiency: 83%
Input Circuit Breaker: 3-5 Amp DIMENSIONS: 1.6" H x 2.0" W x 5.0" L., 4.1 cm H x 5.1 cm W x 12.7 cm L



Output Voltage:
Part Number: Description:
LT-46C Power Converter DC to DC







LT-46C
- Power Converter DC to DC
