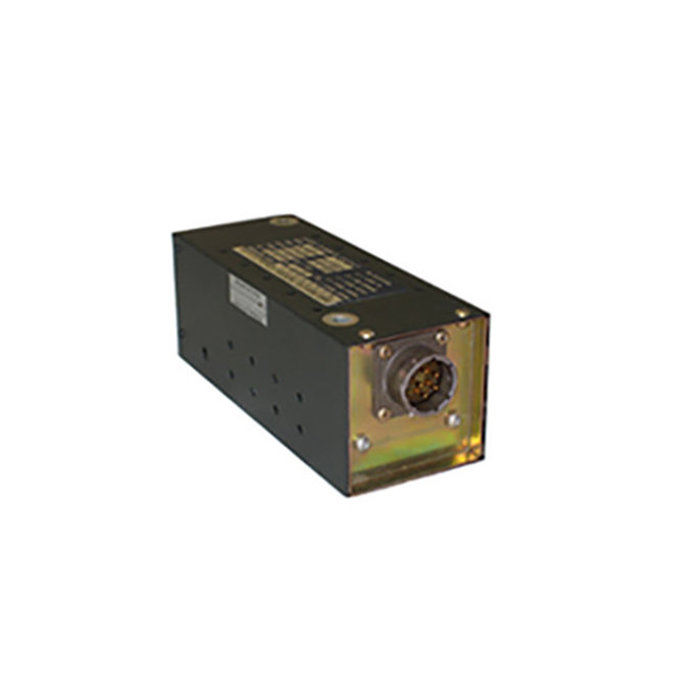

Picture of product LT-103

Part #: LT-103

NSN:

5975-00-578-9364

OEM:

KGS

Desc:

Regulated DC to DC Converter

Part Number :



LT-103
FEATURES
  • Pulse width-modulated DC to DC converter that provides regulated DC power
  • transform an unregulated 28 VDC to a regulated and adjustable DC output via a remote control voltage; 0 to 5 VDC typical or 0 to 28 VDC
  • Used to control the light intensity of incandescent bulbs in aircraft instrument lighting when voltage control is required
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Small and lightweight
  • Maximum output voltage is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A



SPECIFICATIONS

Dimensions: 2.3" H x 2. 3" W x 5.8" L Weight: 1.5 lbs.
Input Voltage: 28 VDC nom., 20 TO 40 VDC Input Current: 4.2 amps typical at 28VDC
Output Voltage: 0 to 28 Output Current: 3.6 amps DC
MAx VA Rating: 100 TSO: C71
Regulation: 2% for line, 2% load and 2% temperature Output Ripple: 25 mVp-p
Altitude: 55,000 ft. Temperature: -55°C to +71°C (sufficient cooling required @ +71°C ambient)
Overload Protection: Input and output current pulse when overload exceeds approximately 125% of rating Overvoltage Protection: Output voltage is limited to approximately 125% of rating even though remote control rheostat opens or shorts, or internal failure occurs.



Part Number Description
 LT-103 Regulated DC to DC Converter





Serial # 3491
Condition NEW
Mods -
Tag Date 04/03/24
Shop KGS Electronics
Warranty 1 Year
LT-103
- Regulated DC to DC Converter

NSN: 5975-00-578-9364

Price Condition Status
$1,560.00 NEW OUTRIGHT 1 IN STOCK
