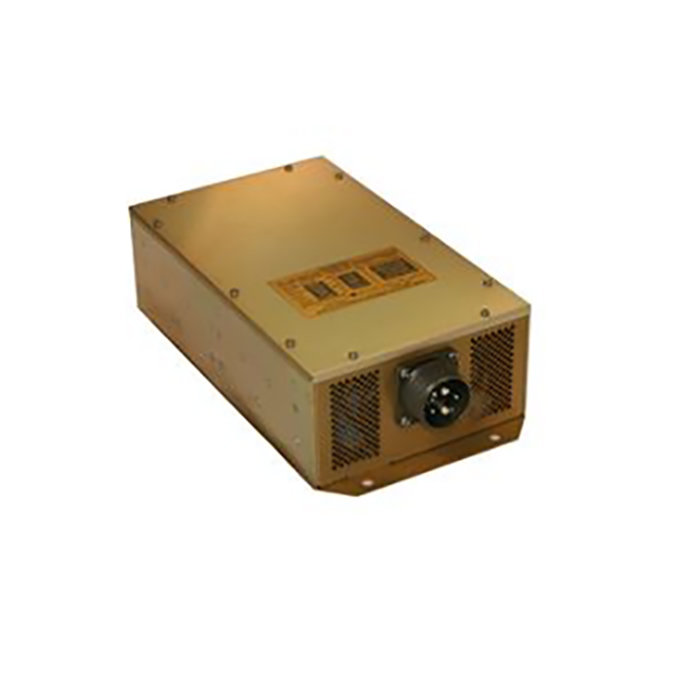

Picture of product HS100
Part #: HS100
Model: HS100
Desc: Frequency Converter
OEM: KGS
Part Number :







FEATURES

  • Lightweight, AC frequency power converter
  • Utilizes the latest state of the art solid state circuitry to convert a 115/200 VAC, 3 phase
  • Design features include a crystal controlled oscillator for output frequency stability and a pulse-width-modulated square to sine wave power conversion scheme
  • Designed to power laptop computers, audio/video entertainment systems



SPECIFICATIONS

Remote ON-OFF: Yes Input Voltage: 115/200 VAC ± 10 VAC, 3 phase
Harmonic Distortion: 0.5% (nominal) Input Frequency: 400 Hz ±100 Hz
Output Wave Form: Sine Output Phase: Single
Power Factor: +.8 to -0.8 Efficiency: 87%(nominal)
Response Time: 300 uSec (no load to full load) Cooling: Thermostatically controlled, brushless fan.
Operating Temperature: 55°C to 71°C (-65°F to +160°F) Altitude: 55,000 Ft.
Environmental: DO-160C env. cat. F3ZBB[LV]XXXXXXBXAXXXBXXX Remote ON-OFF: Yes
Input Current (A/PH): 3.4 OUTPUT Voltage (VRMS) 115 ±5%
OUTPUT CURRENT: 8.7 Frequency: 60 ±.5 Hz
OUTPUT POWER Power (VA): 1000 WEIGHT: 7.5 lbs. (3.40 kg)





Part Number: Description:
HS100  Frequency Converter






















HS100
- Frequency Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
