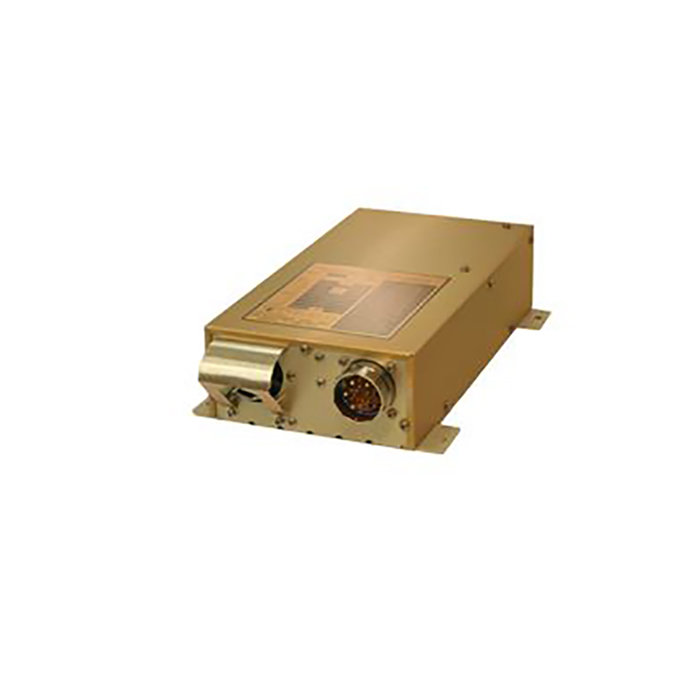

Picture of product DT30
Part #: DT30
Model: DT30
Desc: Multi-Channel DC/AC Power Converter
OEM: KGS
Part Number :





FEATURES

  • Pulse width modulated DC to DC/AC converter that provides regulated three-channel outputs, 0-5 Vdc / 0-20A, 0-28 Vdc / 0-4.3A and 0-115 Vac (400 Hz) / 0-1.04A
  • Each output voltage is controlled independently by a slider voltage 0-5 Vdc from separate potentiometers 10K ohm 1/2 watt to ground or directly from a separate 0-5 Vdc voltage source
  • Internal trim pot is provided to adjust each output voltage ±5% at its full clockwise position of the external control pot
  • Circuit protection includes low input voltage shutdown, soft start, high input voltage shutdown, output over voltage limit and output short circuit current limit
  • Qualified to the rugged military requirements of MIL-Std-810C/D, MIL-STD-108E and MIL-STD-461B



SPECIFICATIONS

Compliance: FAA TSO-C73 Input Voltage: 28 Vdc NOM., 18 to 32 Vdc
Output Voltage: CH1: 0-5 Vdc / 0-20 Amp (100 W), CH2: 0-28 Vdc / 0-4.3 Amp (120 W), CH3: 0-115 Vac / 0-1.04 A (120 VA) to EL panel (0.2 leading pf load)  Frequency: CH3: 400 (±10) Hz
Distortion (THD): CH3: 10% at 28Vdc at rated .2 pf load Regulation: CH1: 3% load, 2% line & 3% for temp., CH2: 3% load, 2% line & 3% for temp.,CH3: 10% load, 2% line & 3% for temp.
Temperature: -55°C to +71 °C WEIGHT: 4.8 LBS (2.18 kgrams)
COOLING: Thermostatically controlled fan at 60°C Size: 2.50 H x 6.50 W x 9.60 L inches, 63.5 H x 165.1 W x 243.8 L mm, Less protrusion of connector and screw heads
Environment: MIL-STD-810C/D & MIL-STD-108E Connector Mating: M83723/77R2025N
altitude: 55,000FT



Part Number: Description:
DT30  Multi-Channel DC/AC Power Converter






















DT30
- Multi-Channel DC/AC Power Converter
