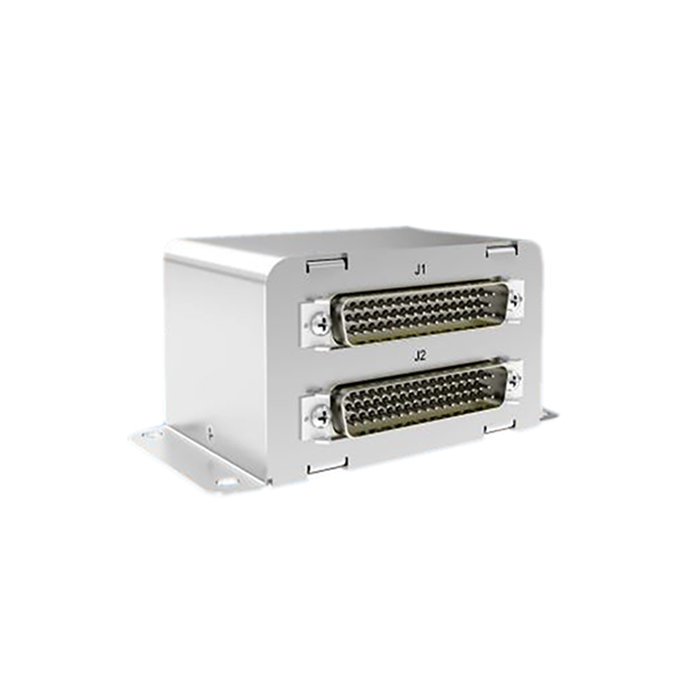

Picture of product JRS24
Part #: JRS24-001
Model: JRS24
Desc: Relay Switch
OEM: Jupiter Avionics
Sched-B: 8536410020
ECCN: 7A994
Part Number :





FEATURES

  • Provides switching for 24 poles of information
  • Organized as six groups of 2PDT relays, each with an individual key line
  • Each group can be used independently
  • Can be picked as two groups (12 contact sets)
  • Able to choose as one group by applying the required logic level to the appropriate ALL GROUP KEY line
  • Relay switch can be used for applications from dry circuit to 0.5 A switching
  • Mounting:  Qty 4 10-32 screws



SPECIFICATIONS

Nominal voltage: 28 Vdc Maximum voltage: 30.3 Vdc
Minimum voltage: 22.0 Vdc Emergency voltage: 18.0 Vdc
Input current: ≤ 0.2 A max @ 28 Vdc Weight (maximum): 0.48 lb [0.22 kg]
Overall depth (maximum): 65.5 mm [2.58"] Height (maximum): 54.0 mm [2.13"]
Width (maximum): 114.3 mm [4.50"] Material: brushed aluminum with conversion coating
Connectors: Two 50 pin D-Sub male, V5 locking Bonding: ≤ 2.5 mΩ
Part Number: Description:
JRS24-001 Relay Switch
