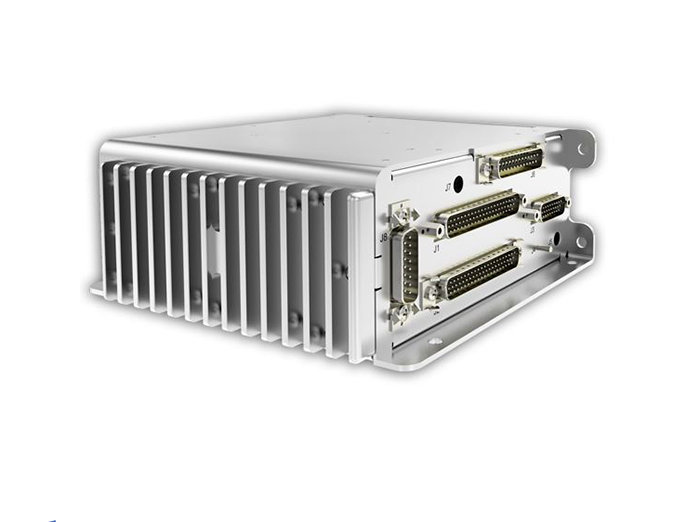

Picture of product JRAC2

Part #:

Model: JRAC2

OEM:

Jupiter Avionics

Desc:

Remote Audio Controller

Part Number :
jupiter-avionics


JRAC2




FEATURES

  • The JRAC2-001 Dual Audio Controller is remote-mounted and relies upon a serial data bus from a combination of Multi-Function Display Systems or Jupiter JCP Series Panels for control and display of audio functions
  • The JRAC2-001 Dual audio Controller is a compact, lightweight unit that also incorporates a 10 Watt Speaker Amplifier and a 3 Channel Aural Message Generator
  • The unit supports up to 8 users with 4 users having transmit capability
  • The JRAC2-001 Dual audio Controller can be configured to support either low impedance headsets (5 ohm mic and 8 ohm phones) or high impedance headsets (150 ohm amplified dynamic mic and 150 ohm phones)
  • By using a Windows® based application (ProCS™), configuration settings may be changed using a PC, even when the unit is installed in the aircraft
  • Up to 8 users
  • Field configurable settings
  • Adjustable input and output levels
  • Balanced ICS, CVR, Rx Comp. & transmit mic. outputs
  • Two adjustable CVR outputs
  • Configurable audio alert messages
  • Up to 10 COM Transceivers
  • Individual volume controls for transceivers
  • Up to 4 Receivers + 4 direct audio
  • Music muting
  • 4 Duplex mode transmission positions for telephone operation
  • 10 W speaker output with volume control
  • Individual mic. gating
  • Tx capability for 4 users
  • RX mute capability
  • High or Low Headset impedance capable
  • User1 / User2 ICS Isolate mode

Other models of the JRAC2 are available:

  • JRAC2-002 Base Model plus Speaker Amplifier
  • JRAC2-003 Base Model plus Message Generator
  • JRAC2-004 Base Model



SPECIFICATIONS

Electrical Power: 28 Vdc @ 1.5 A max Operational Temperature : -45 °C to +70 °C
Altitude: 50,000 ft. max Survival Temperature : -55 °C to +85 °C
Humidity: 95% Shock: 6g (any axis)
Headphone (High or low impedance): 250 mW into 600 ohms; 250 mW into 8 ohms TSO Compliance: Contact JAC for TSO status
weight: 2.85 lbs. [1.30 kg] Max. Installation Kit: INST-RAC21
Part Number: Description:
jrac2-001 Dual Remote Audio Controller Speaker Amp- Message Generator
jrac2-002 Dual Remote Audio Controller-Speaker Amp
jrac2-003 Dual Remote Audio Controller-Message Generator
jrac2-004 Dual Remote Audio Controller

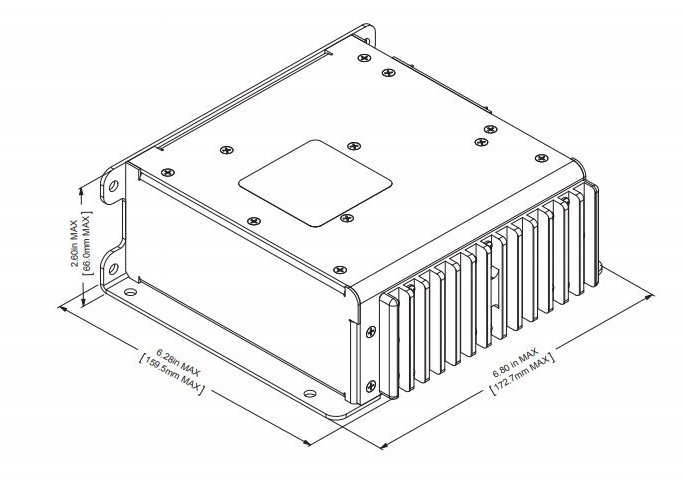

jrac2image
JRAC2-001
- Remote Dual Audio Controller w/ Msg Gen, Spk Amp
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JRAC2-002
- Remote Dual Audio Controller w/ Speaker Amplifier
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JRAC2-003
- Remote Dual Audio Controller w/ Msg Gen
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JRAC2-004
- Remote Dual Audio Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TSPR-JRAC2
- JRAC2 Test Set
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
