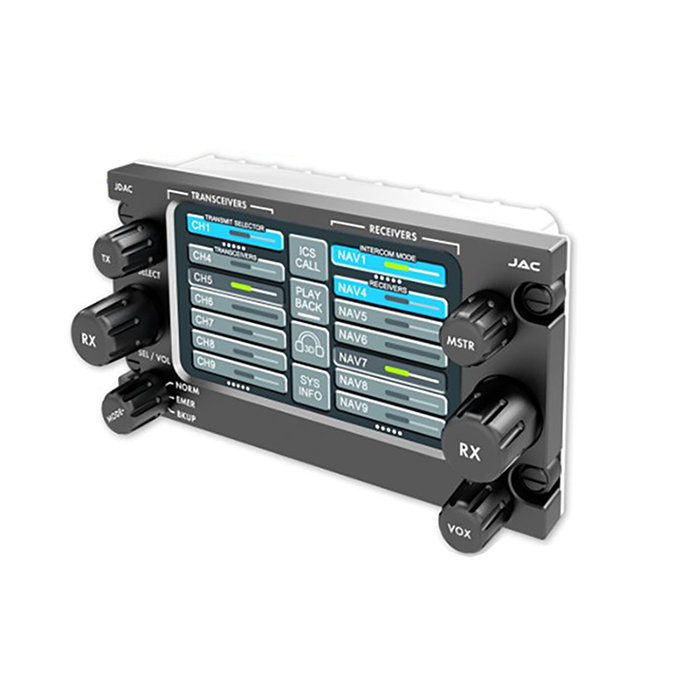

Picture of product JDAC
Part #: JDAC-002
Model: JDAC
Desc: Eclipse Digital Audio Control Panel
OEM: Jupiter Avionics
Part Number :







FEATURES

  • JDAC-002 Digital Audio Control Panel is designed to operate as part of an Eclipse aircraft digital audio system
  • 3D audio feature which allows the user to assign spatial locations within the stereo headset to each incoming audio signal
  • Rotary and touchscreen controls ensure that operation of the JDAC-002 is intuitive
  • Supports up to 11 Transceivers
  • Supports up to 8 Receivers
  • Supports up to 2 music level controls
  • Supports up to 2 speaker level controls
  • PC configurable radio legends
  • Individual receive audio volume controls
  • Transmit and receive annunciators for each
  • transceiver
  • Receive annunciators for each receiver
  • Individual user ICS call function
  • Support for a voice recorder
  • ICS PTT activation
  • 5 or 28 Vdc lighting voltage selection
  • Normal / Backup and Emergency power modes
  • Stereo phones outputs with selectable 3D audio




SPECIFICATIONS

Operational Temperature: -45 °C to +70 °C Survival Temperature: -55 °C to +85 °C
Humidity: 95% Altitude: 55,000 Feet
Shock: 20g (any axis) TSO Compliance: Contact JAC for TSO status
Installation Kit: INST-JDAC



Part Number: Description:
 JdaC-002 Eclipse Digital Audio Control Panel






JDAC-002
- Eclipse Digital Audio Control Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
