Picture of product JCP3

Part #:

Model: JCP3

OEM:

Jupiter Avionics

Desc:

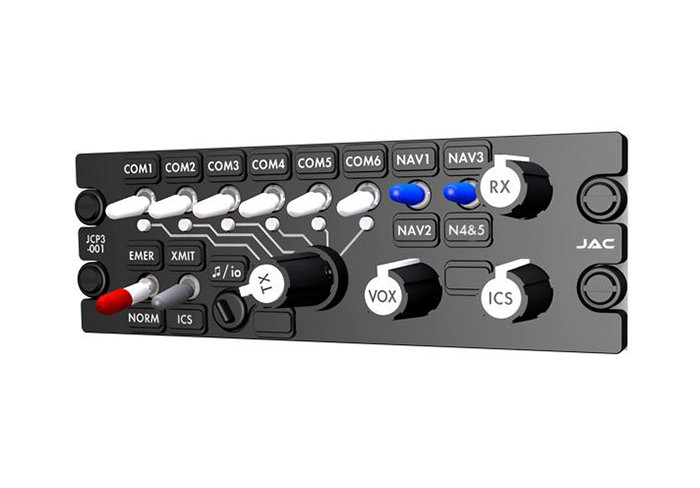

Reduced Depth Control Panel

Part Number :
jupiter-avionics
JCP3-001

FEATURES

  • Designed to operate the Jupiter Avionics JRAC-001 Remote Audio Controller, the JCP series of remote panels offers two significant advantages over conventional analogue audio panels
  • The reduced depth behind the panel opens up a wider choice of locations, especially where space is at a premium
  • Reduced number of wires between the avionics bay and the remote panel will result in installation and weight savings
  • NVG compatible removable legends and annunciators
SPECIFICATIONS
operational temperature: -45 °C to +70 °C Survival Temperature: -55 °C to +85 °C
Humidity: 95% Altitude: 55,000 ft.
Shock: 20g (any axis) Installation Kit: INST-JCPx

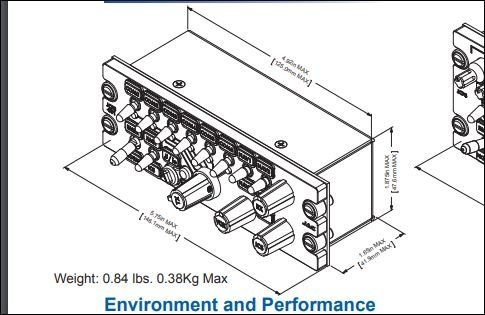

weight: Weight: 0.84 lbs. 0.38Kg Max TSO Compliance JCP3-x01: TC CAN-TSO-C139
Part Number Description CONTROL PANEL
JCP3-001 Reduced Depth Control Panel
jcp3-n01 NVG Reduced Depth Control Panel

jcp3001
JCP3-001
- Reduced Depth Control Panel (6 TX)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JCP3-N01
- Reduced Depth Control Panel, 6 TX, NVG
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
