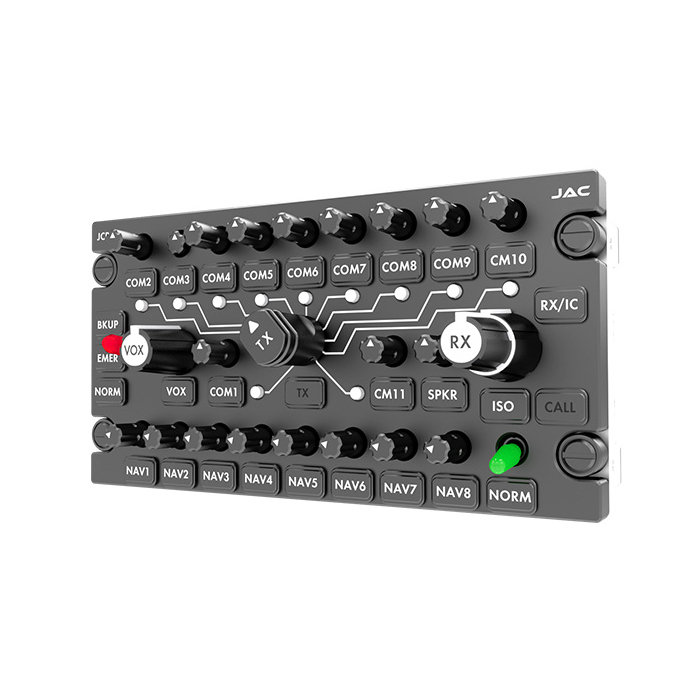

Picture of product JCP2
Model: JCP2
Desc: Eclipse Audio Control Panel
OEM: Jupiter Avionics
Part Number :







FEATURES

  • JCP2-x01 Control Panel is designed to operate as part of an Eclipse aircraft digital audio system
  • 2.6 inches (<65mm) behind the front panel
  • Supports up to 11 Transceivers
  • Supports up to 8 Receivers
  • Field replaceable legends
  • Individual Receive audio ON/OFF/VOLUME controls
  • 5 or 28 Vdc lighting voltage selection
  • Transmit select annunciators
  • Normal / Backup and Emergency power modes



SPECIFICATIONS

Operational Temperature: -45 °C to +70 °C Survival Temperature: -55 °C to +85 °C
Humidity: 95% Altitude: 55,000 Feet
Shock: 20g (any axis) TSO Compliance: Contact JAC for TSO status
Installation Kit: INST-JCPx



Part Number: Description:
 JACP2-001 Eclipse Audio Control Panel






JCP2-001
- Eclipse Audio Control Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JCP2-010
- Reduced Depth Control Panel, 10 TX w/ Vol Ctl
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JCP2-N10
- Reduced Depth Control Panel, NVG
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
