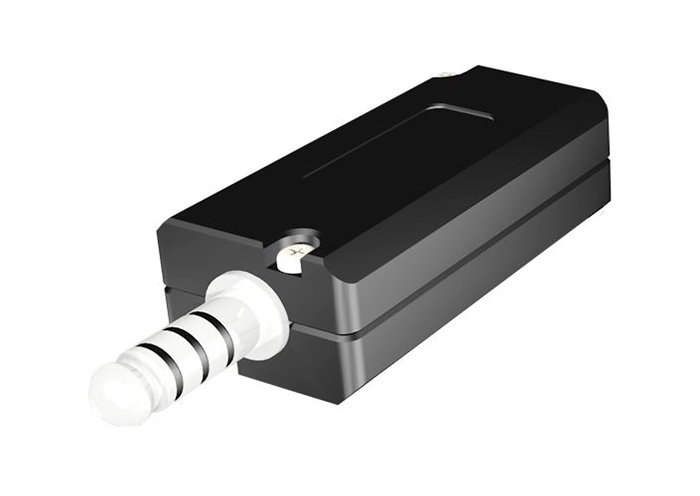

Picture of product JA39

Part #:

Model: JA39

OEM:

Jupiter Avionics

Part Number :
Jupiter Avionics


JA39




FEATURES

Low Impedance Headset Adapter - allows a low impedance headset (5 Ohm Mic - 8 Ohm Phones) to be used with a regular aviation audio controller like the Jupiter Avionics Corp JA95-001
 Operates using the Mic Bias supply of the audio controller and requires no other external power
Features an industry standard TJ-120 headset pin-out to allow plug and play operation
Metalized plastic case construction allows the adapter to be used in high RF environments
Suitable for adapting 5 ohm headsets for use with the Jupiter wiJAC™ Wireless Aircraft Headset Adapter



SPECIFICATIONS
weight: 0.15 lb. 70 g Max operational: -40 °C to +50 °C
humidity: 95% alititude: 25,000 ft. MAX
shock: 20g (any axis) case material: Metalized Plastic
input: 5 Ohm Dynamic Mic and 150 Ohm Phones output: Equivalent to 150 Ohm Amplified Dynamic Mic and 8 Ohms Phones
Part Number: Description:
JA39-001 Low Impedance Headset Adapter 5 Ohm Mic-8 Ohm Phones
ja39-075 Low Impedance Headset Adapter 75 Ohm Mic-150 Ohm Phones
ja39-101 See details above
JA39001
JA39-001
- Headset Impedence Adapter, 5 Ohm Mic
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA39-017
- Low Impedance Headset Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA39-022
- Peltor Headset Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA39-075
- Headset Impedence Adapter, 75 Ohm Mic
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
JA39-101
- Headseet Impedence Adapter, 5 Ohm Mic - 20" Cable
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
