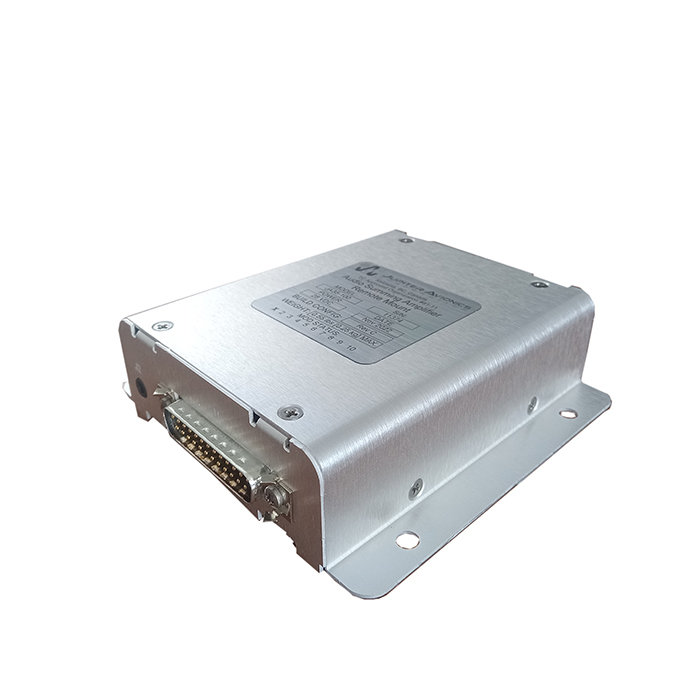

Picture of product JA35

Part #: JA35-100

Model: JA35

OEM:

Jupiter Avionics

Desc:

Remote Mount Audio Summing Amplifier

Part Number :



JA35-100
FEATURES
  • Remote mount audio summing amplifier
  • Allow the mixing/adjusting of up to 6 isolated audio signals in various combinations of composite outputs
  • By using Windows based application (ProCS), configuration settings internal may be changed via a 3.5mm jack, even after installation in the aircraft
  • Field configurable settings
  • Field configurable composite output combinations
  • Input signals adjustable from 1Vrms to 10Vrms

SPECIFICATIONS
dimensions: 5.80" L x 4.44" D x 1.25" H weight: 1.00 lb
electrical power: 11 -30 Vdc @ TBD mA typical operating temperature: -40°C to +70°C
Survival temperature: -55°C to +85°C altitude: 50,000 ft max
humidity: 95%, 48 hrs shock: 20g (any axis)
tso compliance: CAN TSO-C139 (pending) Installation kit: INST-JA35
Part Number: Description:
ja35-001 Panel Mount Version
ja35-100 Remote Mount Version





Serial # 11372
Condition NEW
Mods -
Tag Date 11/15/22
Shop Jupiter Avionics Corporation
Warranty 1 Year
Serial # 11373
Condition NEW
Mods -
Tag Date 11/15/22
Shop Jupiter Avionics Corporation
Warranty 1 Year
Serial # 11374
Condition NEW
Mods -
Tag Date 11/15/22
Shop Jupiter Avionics Corporation
Warranty 1 Year
JA35-100
- Remote Mount Audio Summing Amplifier
Price Condition Status
$1,295.00 NEW OUTRIGHT 3 IN STOCK
JA35-001
- Panel Mount Audio Summing Amplifier
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
