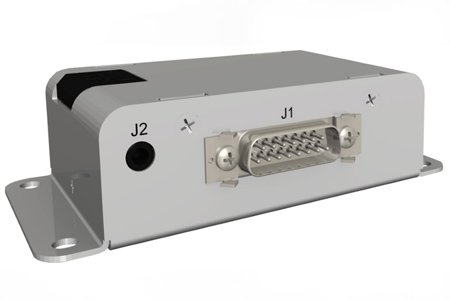

Picture of product JA33
Part #: JA33-001
Model: JA33
Desc: Universal Adapter - Bluetooth Transceiver
OEM: Jupiter Avionics
Sched-B: 8517620050
ECCN: 5A991
Part Number :
Jupiter Avionics


JA33
FEATURES
  • Bluetooth Transceiver
  • Contains a Bluetooth Audio Module
  • Allows aircraft audio management system to receive high quality stereo audio from a Bluetooth enabled device
  • Provides full duplex Bluetooth interface with a cell phone or other mobile device
  • Acts as a Bluetooth to RS-232 interface, allowing a Bluetooth enabled device to interact with an RS-232 device connected to the JA33-001
  • Field configurable settings
  • Use an aircraft headset as a cell phone headset using Bluetooth hands-free connectivity
  • Audio outputs are floating & balanced
  • Configuration port provided making internal settings quickly adjustable using Jupiter's proprietary ProCS software
  • Bluetooth class 3 device with a <10 meters operating range:
  • SPP (Serial Port Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • HFP (Hands Free Profile)
  • Field configurable settings
  • Use an aircraft headset as a cell phone headset using Bluetooth hands-free connectivity
  • Audio outputs are floating and balanced



SPECIFICATIONS

dimensions: Max: 2.42" D x 1.2" H x 3.52" W (4.52" W w/bracket) weight: 0.31 lb
electrical power: 28 Vdc @ 0.5A Max TSO Compliance: Contact JAC for TSO status
Installation Kit: INST-JA33


JA33

Part Number: Description:
ja33-001 Universal Adapter - Bluetooth Transceiver



Serial # 14771
Condition NEW
Mods -
Tag Date 07/04/24
Shop Jupiter Avionics Corporation
Warranty 1 Year
JA33-001
- Universal Adapter - Bluetooth Transceiver
Price Condition Status
$935.00 NEW OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
