Part #: JA23-030

Model: JA23

OEM:

Jupiter Avionics

Desc:

Speaker Amplifier

Part Number :

JA23

FEATURES
  • Remote mount speaker amplifier with an external volume control which allows the crew to monitor receive audio in the aircraft cabin
  • Three differential audio inputs allow mixing of audio before being routing to output port
  • A separate single ended microphone input with mic bias allows direct connection to legacy audio panels
  • Single speaker output with up to 10 Watts of audio power  (-030 30 watt version available also)
  • Supports common network loudspeaker impedances of 3.2 Ohms and higher
  • Three differential audio inputs are provided with allowable input levels from 1Vrms to 2.5Vrms
  • One microphone input with bias voltage
  • 30 dB of adjustable output
  • Supports both speaker mute and Push-to-talk functions
SPECIFICATIONS
Shock, crash safety: 6g, 20g for 11ms weight: 0.68 lb. [0.31 kg] Max.
electrical power: 28 Vdc @ 1.0 A typical tso compliance: Contact JAC for TSO status
altitude: 50,000 ft. max installation Kit: INST-JA23
survival temperture: -55 °C to +85 °C operating temperature: -45 °C to +70 °C
Part Number speaker amplifier Description:

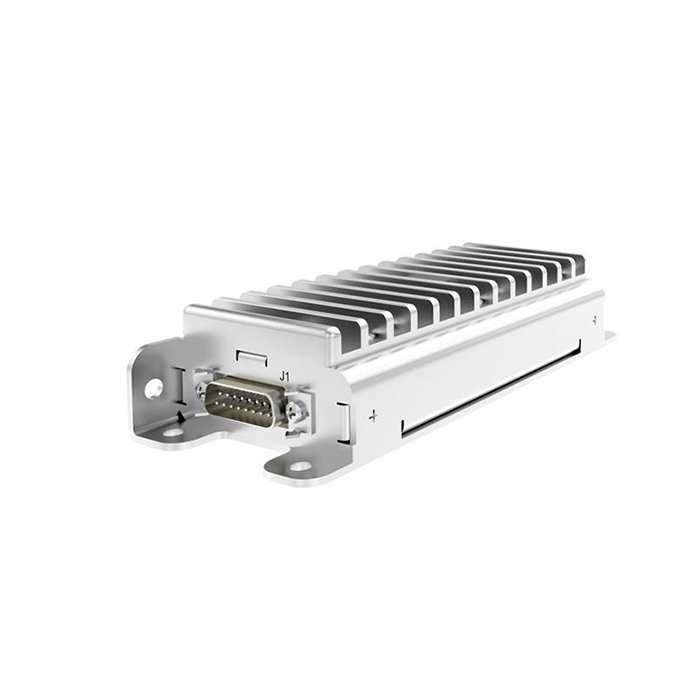

ja23-001 Speaker Amplifier , 10 Watt

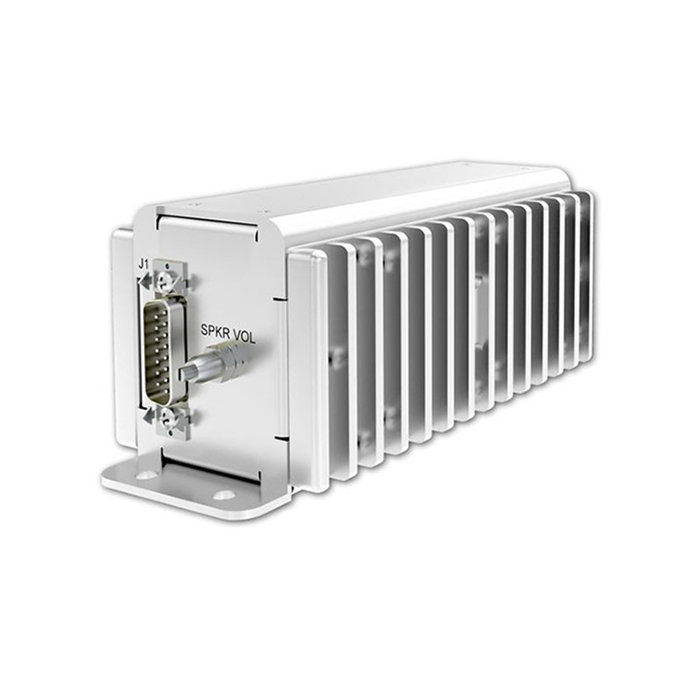

JA23-030 Speaker Amplifier , 30 Watt

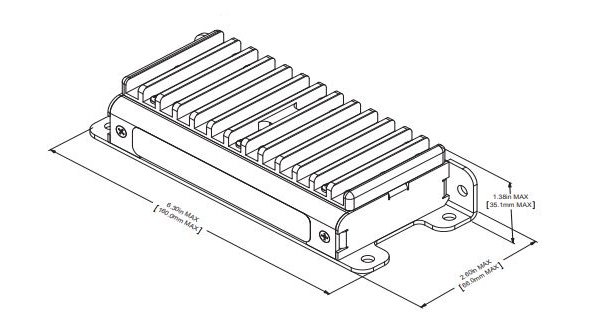

ja23001II
Serial # 14579
Condition NEW
Mods -
Tag Date 05/29/24
Shop Jupiter Avionics Corporation
Warranty 1 Year

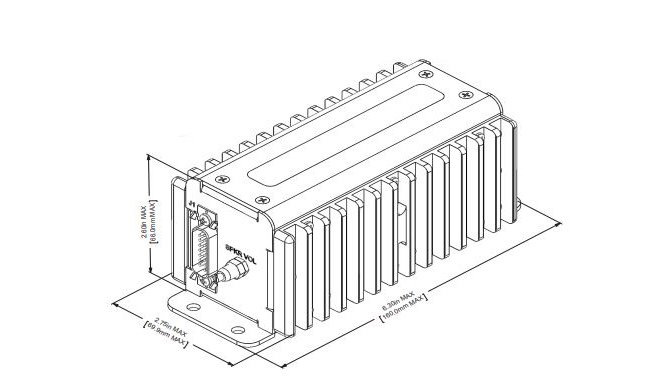

JA23-030
- Speaker Amplifier, 30 Watt
Price Condition Status
$1,695.00 NEW OUTRIGHT 1 IN STOCK
JA23-001
- Speaker Amplifier, 10 Watt
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
