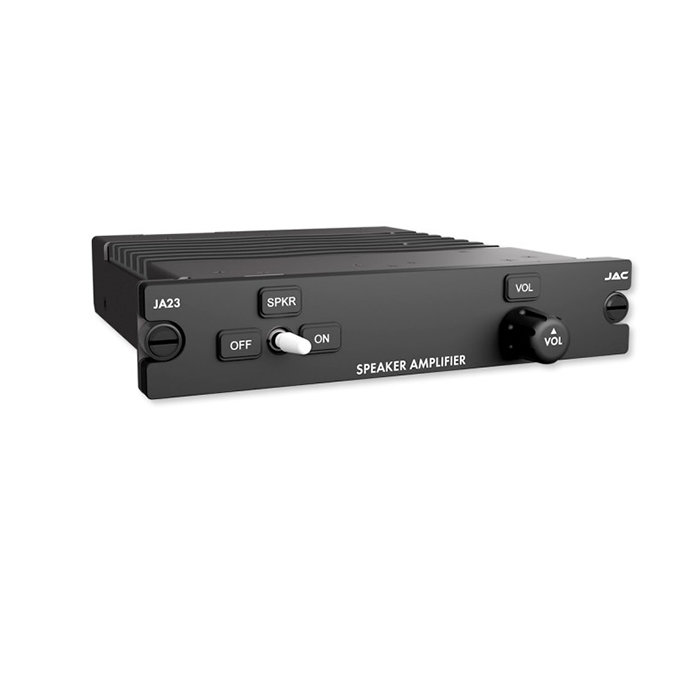

Picture of product JA23-130
Part #: JA23-130
Model: JA23-130
Desc: Speaker Amplifier - 30 Watt- Panel Mount
OEM: Jupiter Avionics
Part Number :







FEATURES

  • JA23-130 is a 30 Watt remote mount speaker amplifier with remote and external volume control functions and is suitable for cabin PA systems
  • Three differential audio inputs allow the mixing of audio signals before being routed to the loudspeaker output port
  • Separate single ended microphone input with mic. bias allows direct connection to the aircraft audio system
  • Single speaker output with up to 30 Watts of audio power
  • Supports common network loudspeaker impedances of 4 Ohms and higher
  • Three differential audio inputs are provided with allowable input levels from 1Vrms to 2.5Vrms
  • One microphone input with bias voltage
  • All four inputs are summed to a common output
  • 30dB of adjustable output
  • Supports both loudspeaker mute and push-to-talk functions



SPECIFICATIONS

Operational Temperature: -45 °C to +70 °C Survival Temperature: -55 °C to +85 °C
Electrical Power: 28 Vdc @ 2.0 A typical Altitude: 55,000 Feet
Shock: 60g, 20g for 11ms TSO Compliance: Contact JAC for TSO status
Installation Kit: INST-JA23 Weight: TBD lb. [TBD kg] Max



Part Number: Description:
 JA23-130 Speaker Amplifier - 30 Watt- Panel Mount






JA23-130
- Speaker Amplifier - 30 Watt- Panel Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
